Retired Brother NV180 Sewing & Embroidery Machine
Step into the world of embroidery with the Brother NV180 Sewing and Embroidery Combination Machine
The Innov-is NV180 combination machine is like having three machines in one. It sews, it quilts, it embroiders, and it does all three brilliantly! Loaded with luxury advanced features for an affordable price, you'll love how easy it is to use. It is the ideal machine for hobbyists of all skill levels.
It is the ideal machine for all your home sewing and embroidery needs. Enjoy using the many built-in decorative stitches and embroidery designs to personalise your projects. Lightweight and portable to take with you when you travel to classes or to family and friends.
This model is exclusive to Echidna Sewing in Australia!
Looking for Disney? View the Brother NV180D →
3-in-1 machine, perfect for every home
Sew
Embroider
Quilt
Everything to create a magical embroidery project, and more!
Advanced needle
threading system
Effortlessly thread the needle by simply lowering the lever.
Easy and simple - with the press of a lever, the thread is pulled through the eye of the needle! This advanced needle threading system saves you frustration and strain on your eyes.
Step by step threading
Be guided by the step by step illustrations on the machine so you can easily thread your machine with no trouble.
Quick set bobbin
Use Brother’s quick and seamless quick set drop-in bobbin feature. Simply drop in a full bobbin, thread in the direction of the arrow and you’re ready to sew.
Colour touch screen display
Manage all your sewing, embroidery and quilting functions on the easy-to-use 3.7" colour LCD touch screen. Preview your designs and stitches on screen before stitching them.
Plus, follow the built-in animated step by step instructions to make it easy for you to learn the machine!
Choose from different sewing stitches and preview them on screen, with the ability to adjust the length and width. Or, you can even create your own stitches with the My Custom Stitches feature.

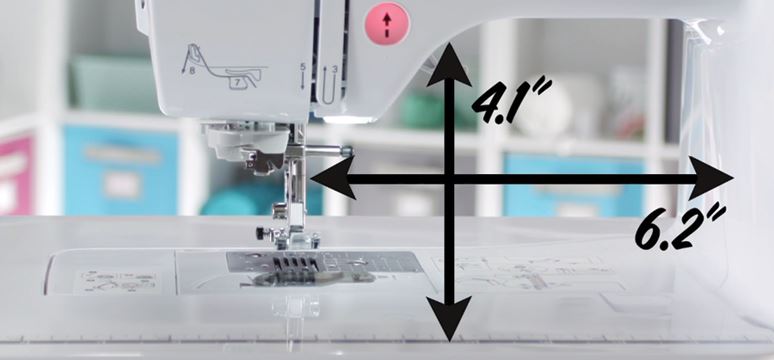

Spacious workspace
The large 6.2” × 4.1” work area makes sewing easier and provides more space for quilts and bulky projects. You have the opportunity to create incredible projects with ease!
Maximum embroidery field: 100mm x 100mm (4" x 4")
Bobbin winder
Fast and simple threading makes winding bobbins quick and easy. You can even use your own colour thread!
Central controls
The operating buttons make this machine even easier to use:
- Thread cutter
- Speed Control
- Needle position up/down
- Start/Stop function
- Reverse sewing
Embroidery Features

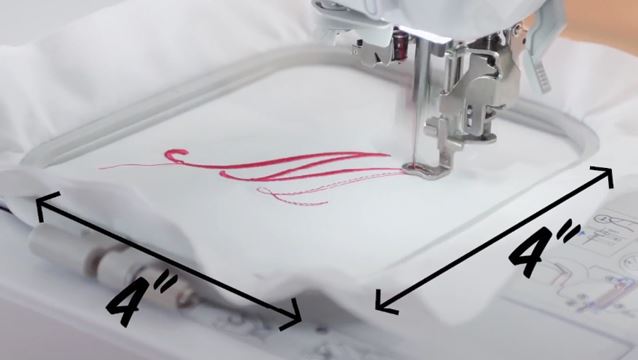

Embroidery area
The NV180 has the perfect size hoop for you to start your embroidery journey. The 4” x 4” hoop has a maximum embroidery field of 100mm x 100mm and is ideal for you to embellish your creations, personalise everyday items around your home or create custom gifts.
Two additional frames available for purchase:
- 60mm x 20mm
- 170mm x 100mm (requires 2 hoopings)
Built-in embroidery designs and fonts
Add something to your creations using the library of 80 built-in embroidery designs, 140 frame pattern combinations and 10 embroidery lettering fonts.
You can combine lettering and frames to create your own unique and stylish monograms. Or, load in your own custom embroidery designs from a USB which can be created using embroidery software.
Plus, there are thousands of embroidery designs available online so your library will be unlimited!
On-screen editing
Easily preview, edit, adjust or combine designs and letters using on-screen editing. It allows you to merge multiple designs or add text to an existing design. Plus, you can manipulate and preview the changes of a design such as altering the colour, stitch density, rotation and move elements.
On-screen editing allows you to edit built-in fonts and change thread colours and configuration of a pattern. Easily adjust the size, rotation or mirror embroidery patterns with just the touch of a button. You can add multiple lines of text and align it to the left, right or center, with text rotation and font selection also available from one single editing panel.
USB port
Load your embroidery designs directly onto your machine by simply inserting a USB memory stick with the files on them.
Whether it’s purchased designs or designs you created yourself using software, you’ll be stitching them out in no time.
Sewing Features
8 feet included
- Zigzag foot “J”
- Monogramming foot “N”
- Overcasting foot “G”
- Zipper foot “I”
- Blind stitch foot “R”
- Button fitting foot “M”
- Buttonhole foot “A”
- Embroidery foot “Q”
Stitches
Expand your creativity with 181 built-in sewing stitches, 10 Button holes and 4 sewing lettering fonts.
Create buttonholes and attach buttons
Using the buttonhole feet included, create buttonholes and attach buttons to most types of clothing.
My Custom Stitch
You can create your own personalised sewing stitches and save them for future use!
Feed dogs/box feed system
This machine features a system that moves the feed dog in a box motion. This eliminates material shrinking and shifting during your sewing.
Free-arm
Use the free-arm to complete tubular projects like sleeves, trouser legs and more.
Built to last
Designed for years of durability, the robust metal body of this machine will reduce vibration and shake.
The powerful DC (direct current) motor delivers explosive needle penetration to handle thicker, bulky layers of fabrics such as denim.
Weighing 12.5kg means it has a little bit of weight on it’s side to keep it stable. You want your machine to be firm and supported when sewing so it doesn’t tip over, and this machine will be secure on your table.
Included hard case
Use the hard carry case included to protect your machine whether you're travelling or if it's in storage!
Bright LED lighting
With two built-in LED lights, you can light up the needle area and illuminate your workspace, making it easier to work on dark fabrics.
Presser foot levelling button
Keeps the presser foot level for smooth, consistent stitching over changing fabric thickness, such as the start of a seam or crossing seams.
Thread sensor
It’s equipped with upper and lower thread sensors that alert you when thread is broken or has run out.
Automatic thread cutter
No scissors needed! Automatically cut upper and lower threads with the automatic thread cutter.
Speed slide control
Use the speed slide control feature when using your foot control or start stop button, giving you full control of the speed.
Needle up/down button
Simply choose whether the needle should be up or down when the machine stops. Having your needle down is a useful pivot function when turning material, sewing corners or joining quilt pieces.
650 stitches per minute
Personalise and embellish your projects with up to 650 stitches per minute to add beautiful decorative embroidery and lettering.
Want to see more? Check out the videos to learn more about this incredible machine →
View detailed specifications →
Brother NV180 Sewing and Embroidery Machine
What's in the box
- Zigzag foot "J"
- Monogramming foot "N"
- Overcasting foot "G"
- Zipper foot "I"
- Blind stitch foot "R"
- Button fitting foot "M"
- Buttonhole foot "A"
- Embroidery foot "Q"
- Needle set
- Twin needle
- Bobbin (on machine)
- 4 x pre-wound bobbin (white embroidery thread)
- 4 x bobbin clip
- Seam ripper
- Scissors
- Cleaning brush
- Eyelet punch
- Screwdriver
- Disc-shaped screwdriver
- Extra spool pin
- Spool cap (large)
- Spool cap (medium) (on machine)
- Spool cap (small)
- Mini king thread spool insert
- Bobbin case (on machine)
- Spool net
- Foot controller
- 4” x 4” Embroidery frame
- 4” x 4” Embroidery frame sheet
- Accessory bag
- Hard case
- Grid sheet set
- Operation manual
- Quick reference guide
- Embroidery design guide
*Exclusive to Echidna in Australia
Brother NV180 - Computerised Sewing and Embroidery Machine
Basic Features | Embroidery Features | Sewing Features
Basic Features
| Electronic Warranty | 5 Years |
| Mechanical Warranty | 3 Years |
| Unit Weight | 6.6kg (without embroidery arm) |
| Unit Size (W),(D),(H) | 52cm x 22cm x 32cm |
| Needle To Arm Span | 6.2" |
| Wi-Fi Enabled | No |
| USB Port | 1 |
| Screen Type | LCD Colour Touch Screen |
| Screen Size | 3.7" |
| Workspace Lighting | 1 LED |
| Needle Threader | Semi-Automatic |
| Quick-Set Bobbin | Yes |
| Start/Stop Button | Yes |
| Needle Position Button | Yes |
| Thread Cutter | Yes |
| Thread Tension | Manual |
| Thread Sensor | Needle and Bobbin |
| On-Screen Help | Yes |
| Built-In Video Tutorials | No |
| Carry Case | Hard Case Included |
| # Included Feet | 8 |
| Included Feet |
|
Embroidery Features
| Maximum Embroidery Area (mm) | 100mm x 100mm |
| Maximum Embroidery Area (inches) | 4" x 4" |
| Hoops Included | 1 |
| Hoops Sizes Included | 4" x 4" (100mm x 100mm) |
| Built-in Embroidery Designs | 80 |
| Disney Designs | No |
| Embroidery Lettering/Fonts | 10 |
| On-Screen Editing | Yes |
Sewing Features
| Wide Table | Available separately |
| Foot Controller | Included |
| Total Built-in Decorative Stitches | 181 |
| Disney Sewing Stitches | No |
| Sewing Lettering/Fonts | 4 |
| My Custom Stitch | Yes |
| Max Stitch Length | 7mm |
| Buttonholes | 10 |
| Feed Dog Points | 7 |
| Sewing Speed | 850 spm |
| Lock Stitch Button | No |
| SKU | NV180_Options |
|---|---|
| Brand | Brother |
| Mechanical Warranty | 3 Years |
| Computerised Warranty | 5 Years |
| Machine Weight | 6.6kg |
| Machine Weight With Embroidery Unit | 8.3kg |
| Machine Height | 307mm |
| Machine Length | 419mm |
| Machine Length (Embroidery Unit Attached) | 520mm |
| Machine Depth | 190mm |
| Machine Depth (Embroidery Unit Attached) | 219mm |
| Workspace | 160mm x 104mm (6.2" x 4.1") |
| Screen Size | 3.7" |
| Screen Type | Colour LCD |
| Lighting Type | LED |
| Number Of Lights | 1 |
| USB Port | 1 |
| Wi-Fi Enabled | No |
| Thread Cutter | Yes |
| Needle Threading | Automatic |
| Needle Up/Down Button | Yes |
| Drop Feed | Yes |
| Presser Foot Lift Button | No |
| Start/Stop Button | Yes |
| Reverse Button | Yes |
| Auto-lock Stitch Button | No |
| Stitch Selector | On Screen |
| Foot Pressure Adjustment | No |
| Adjustable Presser Foot Height | No |
| Bobbin Winder | Yes |
| Drop-in Bobbin | Yes |
| Tension Adjustment | Manual Dial |
| Thread Sensor - Upper | Yes |
| Thread Sensor - Bobbin | Yes |
| Wide Table Included | No |
| Foot Controller Included | Yes |
| Knee Lifter Compatible | No |
| Case Included | Yes (Hard Case) |
| Sewing Speed | 850SPM |
| Max Stitch Width | 7mm |
| Max Stitch Length | 500 |
| Quick Reference Stitch Chart | Yes |
| Built-in Sewing Stitches | 181 |
| Buttonhole Type | 1-Step |
| Built-in Buttonhole Stitches | 10 |
| Sewing Fonts | 4 |
| Sewing Basting Stitch Included | No |
| MuVit Included | No |
| Stitch Regulator Included | No |
| Included Sewing Feet | 8 |
| Free-arm | Yes |
| Pivot Function | No |
| Feed Dogs | 7 |
| Stitch Elongation | Yes |
| Stitch Tapering | Yes |
| Mirror Image Stitches | Yes |
| Floating Mode | No |
| Custom Stitch Creation | Yes |
| Max Embroidery Area | 100mm x 100mm (4" x 4") |
| Max Embroidery Speed | 400SPM |
| Number Of Needles | 1 |
| Hoops Included | 1 |
| Hoops Sizes | 100mm x 100mm (4" x 4") |
| Built-in Embroidery Designs | 80 |
| Built-in Disney Embroidery Designs | 0 |
| Built-in Embroidery Fonts | 10 |
| Embroidery Basting Stitch Included | No |
| Colour Sort | No |
| Shank Height | Low |
| Shipping Weight | 12.6000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.390m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.095082000m3 |
| Products available | |
