Retired Brother NV180D Disney Sewing & Embroidery Machine
Explore the world of embroidery with the Brother NV180D with built-in Disney designs
It's like having three machines in one with the Innov-is NV180 combo machine. It sews, quilts, and embroiders, and it excels at all three! You'll appreciate how simple it is to operate, and it's loaded with premium sophisticated features for a reasonable price. It's the perfect machine for hobbyists of all levels of expertise.
It's the perfect machine for all of your sewing and embroidery projects at home. To personalise your work, take use of the various built-in decorative stitches and embroidery designs. You can take it with you when you go to courses or visit family and friends as it's light and portable.
Looking for non-Disney? View the Brother NV180 →
3-in-1 machine, perfect for every home
Sew
Embroider
Quilt
Everything to create a magical embroidery project, and more!
Featuring Disney
Add the magic of Disney to your creations! Choose from the 45 built-in Disney embroidery designs. You can deck out your projects with these wonderful designs, and capture the fantasy of Disney and its characters. They’re the perfect touch on gifts for the kids, or even someone special who loves Disney!

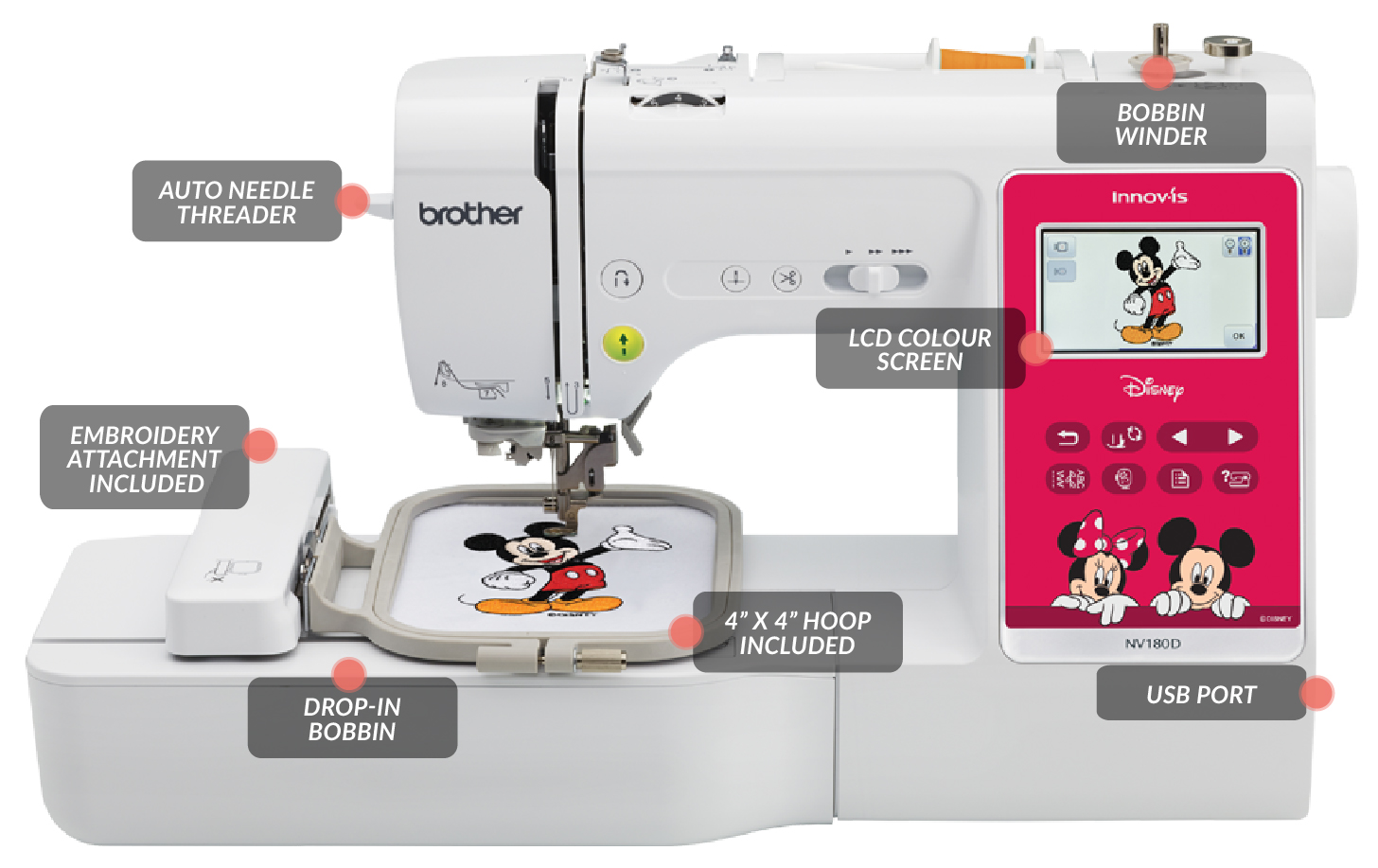

Advanced needle threading system
Effortlessly thread the needle by simply lowering the lever. The thread is pushed into the eye of the needle with the simple touch of a lever! This innovative needle threading mechanism eliminates frustration and eye strain.
Step by step threading
Follow the step-by-step instructions on the machine to effortlessly thread it with no trouble.
Quick Set Bobbin
Make use of Brother's quick and easy drop-in bobbin function. Simply thread in the direction of the arrow with a full bobbin, and you're ready to stitch.
LCD Colour touch screen display
On the easy-to-use 3.7" colour LCD touch screen, you can control all of your sewing, embroidery, and quilting activities. Before stitching, preview your designs and threads on the screen. Choose from different sewing stitches and preview them on screen, with the ability to adjust the length and width. Or, you can even create your own stitches with the My Custom Stitches feature.
Plus, follow the machine's built-in animated step-by-step instructions to make learning the machine a breeze!
Spacious workspace
Sewing is simpler with the large 6.2” 4.1” work area, which also gives extra space for quilts and bulkier projects. You have the potential to build extraordinary creations with ease!
Maximum embroidery field: 100mm x 100mm (4" x 4")
Bobbin winder
Winding bobbins is straightforward and quick with fast and simple threading. You can also use your own colour thread!
Central Controls
The operating buttons make this machine even easier to use:
- Thread cutter
- Speed control
- Needle position up/down
- Start/stop function
- Reverse sewing
Embroidery Features
Embroidery area
The NV180D is the ideal hoop size to get you started with embroidery. With a maximum embroidery area of 100mm x 100mm, the 4” by 4” hoop is excellent for embellishing your crafts, personalising common objects around your house, or creating personalised gifts.
Two additional frames available for purchase:
- 60mm x 20mm
- 170mm x 100mm (requires 2 hoopings)
Built-in stitches, embroidery designs and fonts
Use the library of 80 built-in embroidery patterns, 140 frame pattern variations, and 10 embroidered writing fonts to add something special to your works. You can build your own unique and elegant monograms by combining lettering and frames. Or, you can use a USB to import your own unique embroidered designs made with embroidery software.
Plus, there are thousands of embroidery designs available online that you can download and stitch out.
Plus, there are thousands of embroidery designs available online so your library will be unlimited!
On-screen editing
Using on-screen editing, you can quickly preview, edit, adjust, or combine designs and text. You can use it to combine various designs or add text to an existing one. You can also adjust and preview design modifications such as altering the colour, stitch density, rotation, and moving elements.
On-screen editing lets you alter thread colours and pattern settings as well as adjust built-in typefaces. With the press of a button, you can easily change the size, rotation, or mirror embroidery patterns. Multiple lines of text may be added and aligned to the left, right, or centre, and text rotation and font selection can all be done from a single editing panel.
USB port
Simply insert a USB memory stick with the files to load your embroidery patterns directly onto your machine.
Sewing Features
8 feet included
- Zigzag foot “J”
- Monogramming foot “N”
- Overcasting foot “G”
- Zipper foot “I”
- Blind stitch foot “R”
- Button fitting foot “M”
- Buttonhole foot “A”
- Embroidery foot “Q”
Stitches
With 181 built-in sewing stitches, 10 button holes, and four sewing lettering fonts, you can be as creative as you want.
Create buttonholes and attach buttons
Create buttonholes and fasten buttons to most types of clothes with the included buttonhole foot.
My Custom Stitch
You can create your own personalised sewing stitches and save them for future use!
Feed dogs/box feed system
This machine features a system that moves the feed dog in a box motion. This eliminates material shrinking and shifting during your sewing.
Free-arm
Complete tubular tasks including sleeves, trouser legs, and more with the free-arm.
Built to last
The robust metal body of this machine is designed for years of durability and will decrease vibration and shaking. With a weight of 12.5kg, it has some weight on its side to keep it steady. When sewing, you want the machine to be solid and supported so it doesn't tip over, and you also want it to be stable on your table.
To handle heavier, bulkier layers of textiles like denim, the strong DC (direct current) engine offers explosive needle penetration.
650 stitches per minute
Add stunning decorative embroidery and lettering to your creations by stitching at up to 650 stitches per minute.
Needle up/down
When the machine stops, just choose whether the needle should be in the up or down position. When rotating material, stitching corners, or connecting quilt pieces, having your needle down offers a handy pivot function.
Bright LED Lighting
You can light up the needle area and brighten your workstation with two built-in LED lights, making it simpler to work on dark materials.
Presser Foot Levelling Button
The presser foot levelling button maintains the presser foot level for smooth, consistent stitching when the fabric thickness changes, such as at the start of a seam or while crossing seams.
Thread Sensor
It features upper and lower thread sensors that let you know when the thread is damaged or running out.
Automatic thread cutter
There's no need for scissors! The automated thread cutter cuts upper and lower threads automatically.
Speed Slide Control
When utilising your foot control or start stop button, use the speed slide control function to give you complete control over the speed.
Included hard case
Protect your machine with the sturdy carry case provided, whether you're travelling or storing it!
View detailed specifications →
Brother NV180D Sewing and Embroidery Machine
What's in the box
- Zigzag foot "J"
- Monogramming foot "N"
- Overcasting foot "G"
- Zipper foot "I"
- Blind stitch foot "R"
- Button fitting foot "M"
- Buttonhole foot "A"
- Embroidery foot "Q"
- Needle set
- Twin needle
- Bobbin
- Pre-wound Bobbin
- Bobbin clip
- Seam ripper
- Scissors
- Cleaning brush
- Screwdriver
- Disc-shaped screwdriver
- Extra spool pin
- Spool cap (large)
- Spool cap (medium)
- Spool cap (small)
- Mini king thread spool insert
- Bobbin case
- Spool net
- Foot controller
- 4” x 4” Embroidery frame
- 4” x 4” Embroidery frame sheet
- Accessory bag
- Grid sheet set
- Operation manual
- Hard Cover
Brother NV180D - Computerised Sewing and Embroidery Machine with Disney
Basic Features | Embroidery Features | Sewing Features
Basic Features
| Electronic Warranty | 5 Years |
| Mechanical Warranty | 3 Years |
| Unit Weight | 6.6kg (without embroidery arm) |
| Unit Size (W),(D),(H) | 52cm x 22cm x 32cm |
| Needle To Arm Span | 6.2" |
| Wi-Fi Enabled | No |
| USB Port | 1 |
| Screen Type | LCD Colour Touch Screen |
| Screen Size | 3.7" |
| Workspace Lighting | 1 LED |
| Needle Threader | Semi-Automatic |
| Quick-Set Bobbin | Yes |
| Start/Stop Button | Yes |
| Needle Position Button | Yes |
| Thread Cutter | Yes |
| Thread Tension | Manual |
| Thread Sensor | Needle and Bobbin |
| On-Screen Help | Yes |
| Built-In Video Tutorials | No |
| Carry Case | Hard Case Included |
| # Included Feet | 8 |
| Included Feet |
|
Embroidery Features
| Maximum Embroidery Area (mm) | 100mm x 100mm |
| Maximum Embroidery Area (inches) | 4" x 4" |
| Hoops Included | 1 |
| Hoops Sizes Included | 4" x 4" (100mm x 100mm) |
| Built-in Embroidery Designs | 80 |
| Disney Designs | 45 |
| Embroidery Lettering/Fonts | 10 |
| On-Screen Editing | Yes |
Sewing Features
| Wide Table | Available separately |
| Foot Controller | Included |
| Total Built-in Decorative Stitches | 181 |
| Disney Sewing Stitches | No |
| Sewing Lettering/Fonts | 4 |
| My Custom Stitch | Yes |
| Max Stitch Length | 7mm |
| Buttonholes | 10 |
| Feed Dog Points | 7 |
| Sewing Speed | 850 spm |
| Lock Stitch Button | No |
| SKU | NV180D_Options |
|---|---|
| Brand | Brother |
| Mechanical Warranty | 3 Years |
| Computerised Warranty | 5 Years |
| Machine Weight | 6.6kg |
| Machine Weight With Embroidery Unit | 8.3kg |
| Machine Height | 307mm |
| Machine Length | 419mm |
| Machine Length (Embroidery Unit Attached) | 520mm |
| Machine Depth | 190mm |
| Machine Depth (Embroidery Unit Attached) | 219mm |
| Workspace | 160mm x 104mm (6.2" x 4.1") |
| Screen Size | 3.7" |
| Screen Type | Colour LCD |
| Lighting Type | LED |
| Number Of Lights | 1 |
| USB Port | 1 |
| Wi-Fi Enabled | No |
| Thread Cutter | Yes |
| Needle Threading | Automatic |
| Needle Up/Down Button | Yes |
| Drop Feed | Yes |
| Presser Foot Lift Button | No |
| Start/Stop Button | Yes |
| Reverse Button | Yes |
| Auto-lock Stitch Button | No |
| Stitch Selector | On Screen |
| Foot Pressure Adjustment | No |
| Adjustable Presser Foot Height | No |
| Bobbin Winder | Yes |
| Drop-in Bobbin | Yes |
| Tension Adjustment | Manual Dial |
| Thread Sensor - Upper | Yes |
| Thread Sensor - Bobbin | Yes |
| Wide Table Included | No |
| Foot Controller Included | Yes |
| Knee Lifter Compatible | No |
| Case Included | Yes (Hard Case) |
| Sewing Speed | 850SPM |
| Max Stitch Width | 7mm |
| Max Stitch Length | 5mm |
| Quick Reference Stitch Chart | Yes |
| Built-in Sewing Stitches | 181 |
| Buttonhole Type | 1-Step |
| Built-in Buttonhole Stitches | 10 |
| Sewing Fonts | 4 |
| Sewing Basting Stitch Included | No |
| Included Sewing Feet | 8 |
| Free-arm | Yes |
| Pivot Function | No |
| Feed Dogs | 7 |
| Stitch Elongation | Yes |
| Stitch Tapering | Yes |
| Mirror Image Stitches | Yes |
| Floating Mode | No |
| Custom Stitch Creation | Yes |
| Max Embroidery Area | 100mm x 100mm (4" x 4") |
| Max Embroidery Speed | 400SPM |
| Number Of Needles | 1 |
| Hoops Included | 1 |
| Hoops Sizes | 100mm x 100mm (4" x 4") |
| Built-in Embroidery Designs | 80 |
| Built-in Disney Embroidery Designs | 45 |
| Built-in Embroidery Fonts | 10 |
| Embroidery Basting Stitch Included | No |
| Colour Sort | No |
| Shipping Weight | 12.6000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.390m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.095082000m3 |
| Products available | |
NV180D
| NV180D Machine Only |
|
Brother Australia Innov-is warranty:
3 year on mechanical parts5 years on electrical and electronic parts
