Light years beyond with the Brother Luminaire 2 Innov-is XP2

With the Luminaire 2 Innov-is XP2, you can enjoy all of the advanced features from the original Luminaire, plus brilliant new technology. The XP2 features new quilting innovations and app-based features available from your mobile devices. Sewing technology has now jumped beyond the light year scale.

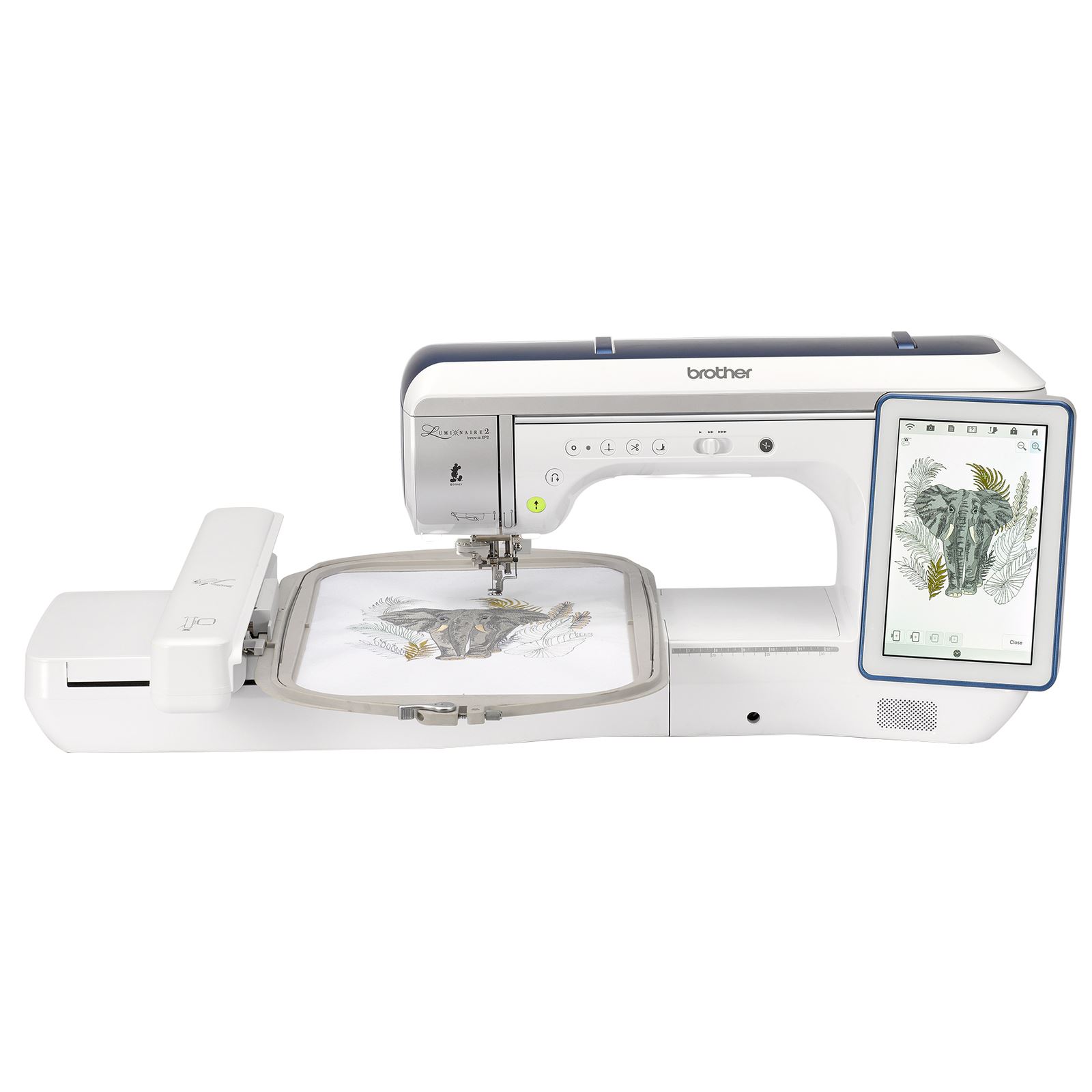

Brother Luminaire 2 Innov-is XP2

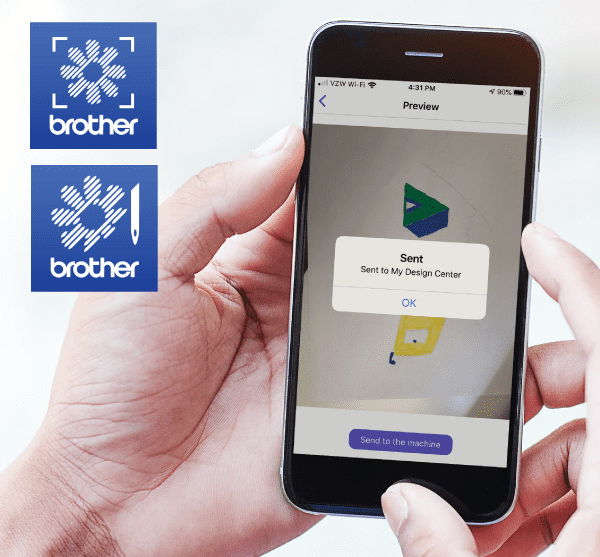

My Design Snap App & My Stitch Monitor

My Design Snap App & My Stitch Monitor

Turn just about anything into embroidery with the My Design Snap mobile app. Select a picture of line art of an illustration from your iOS or Android device and send it directly to your machine through your wireless network.

Keep track of your embroidery using My Stitch Monitor after enabling wireless LAN connectivity between your PC and the Luminaire 2. You can walk away from your machine and be notified via your iOS or Android device when you need to change threads or if your project is complete.

Dual Purpose Stylus

Make adjustments to your stitches directly on your fabric for even more accuracy than ever before with the innovative Dual Purpose Stylus. You can adjust your stitch width, length and left/right shift using the revolutionary stylus. Plus, you can now change the background colour or your preview area to white, black or grey.

The stylus is constructed of dual sides for maximum efficiency. The opposite end of the stylus features a soft tip to work on the LCD display allowing you to select, move or enhance projects directly on the screen.

Dual Purpose Stylus for Brother Luminaire

Enhanced InnovEye plus technology on the Brother Luminaire


Enhanced InnovEye plus technology

Wider view and faster scanning in high resolution

Achieve precision and accuracy with the InnovEye Plus Technology, giving you the ability to scan the entire embroidery area. It provides virtually endless creative options and helps take the guesswork out of your projects. It’s like having a built-in camera and scanner!

  • Live magnified image with up-close viewer
  • End point sewing function
  • Snowman embroidery positioning marker

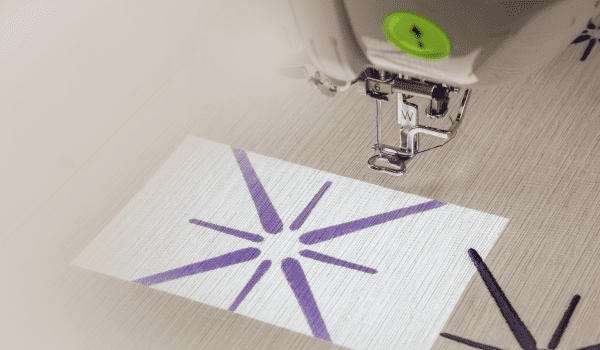

StitchVision Technology see what you stitch on the Brother Luminaire

StitchVision Technology

5"x 3" Projected Preview Area

If you want to achieve perfect placement of your embroidery design, use the StitchVision technology. After choosing an embroidery design, select the StitchVision technology icon on the LCD screen to see your embroidery design projected on your hooped fabric. This will allow you to see a realistic preview before you begin embroidering.

Easy-to-view embroidery pointer on the Brother Luminaire

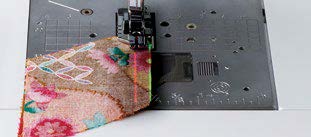

Easy-to-view embroidery pointer

See Your Needle Drop Position

A built-in embroidery pointer is shown on your fabric. You have three colour choices for your pointer to ensure visibility, no matter the colour of your fabric. Using this feature, it eliminates the need to mark fabric with messy chalk. The pointer can show both the center of your embroidery design and the needle drop position on the fabric.


Disney is in our DNA

The Luminaire 2 has the magic of 192 built-in Disney & Pixar embroidery designs and 10 decorative Disney sewing stitches.

From classical to modern day Disney and Pixar characters, the XP2 features a library of adorable designs so you can personalise your projects and add that extra touch of charm.

Disney Embroidery Machine with over 192 Disney Designs on the Brother Luminaire

Large 10.1” HD LCD Touch screen display with capacitive technology

With familiar sliding, swiping, scrolling and pinch-to-zoom features, this simple and intuitive 10.1” capacitive touch screen works like a tablet. The user interface offers large, defined crystal-clear icons and colour navigation for easy viewing.

Large 10.1” HD LCD Touch screen XP2 Luminaire


Built-in instructional manual and tutorial videos

The built-in HD tutorials make learning easy! You can view over 40 tutorial videos or stream your own creations using the industry standard MP4 format.

Zoom and adjustment features

Watch your creations become larger than life as you view them in crisp, vivid colour and use the zoom function of up to 1600% within My Design Center, and up to 400% in other modes. Easily adjust your design by rotating in 0.1 degree increments.

Enhanced LED Lighting

With the enhanced machine lighting, more brilliant than ever before, your projects will radiate. The powerful, high-colour LED lighting will keep your workspace bright and clear with less shading to make it easier on your eyes and keep your focus on your project. Control the brightness to your liking with five different settings including an “off” mode to find your ideal level.

Expansive Workspace and Embroidery Area

13.1” needle to arm. 65 square inches of workspace on the Luminaire

13.1” needle to arm. 65 square inches of workspace.

You can easily achieve projects of a larger size with the powerful combination of the 65 square inch workspace - the largest of any Brother machine - and the generous 13” needle to arm span. The largest needle to arm gives you the ability to easily accommodate a rolled king-size quilt and is a dream for any sewer, embroiderer, crafter or quilter.

Large 10 ⅝” x 16” (272mm x 408mm) Frame extra large embroidery area on the brother Luminaire

Large 10 ⅝” x 16” (272mm x 408mm) Frame

This machine features the largest frame that Brother currently offers with a size of 10 ⅝” x 16” (272mm x 408mm). Constructed with an inventive Spring Lever Release for ease of use and efficient rubber plates on both sides of the inner frame, it will hold your fabric securely. You won’t ever use clamps again!

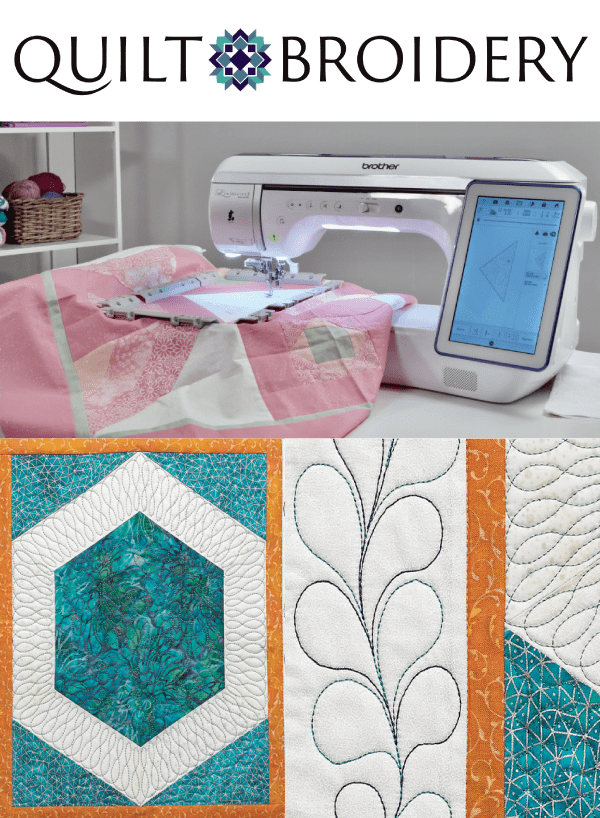

Quiltbroidery Brother quilting pattern embroidery Luminaire


Are you an embroiderer who wants to dip their toes in quilting or a quilter who wants to dabble in embroidery? The Luminaire 2 features give options of two colour quilting sash designs, perfect for astounding, vibrant borders. On top of the excitement of auto-split designs, you can enjoy five hexagon shapes to offer more options and then choose from either single or triple stitch for quilt sashing, to let your stitches stand out on your projects.

  • Built-in hexagon shapes for auto-split sash
  • Needle point projection for free-motion quilting
  • Two-colour quilting sash designs
  • Hand quilting stitches in three lengths
  • Triple stitch option for quilting sash patterns
  • Foldable spool thread
  • One-action release needle plate
  • Echo quilting
  • Auto-split for large quilting sashes
  • Muvit digital dual feed system

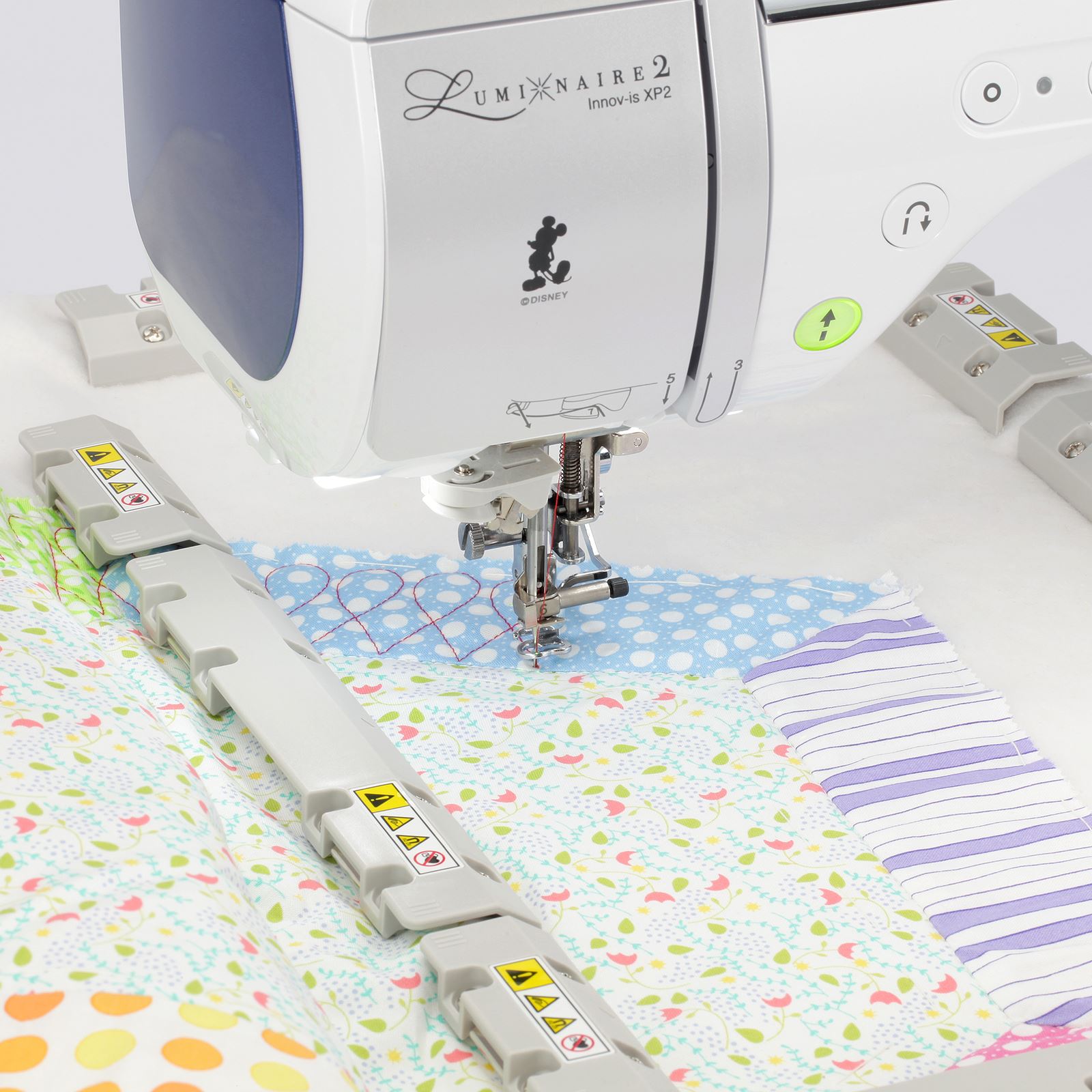

  • Patent-pending Brother exclusive hoopnetic magnetic sash frame

Brother Luminaire My Design Center

My Design Center

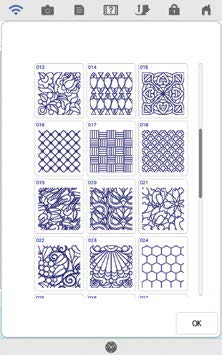

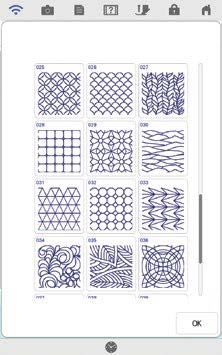

Custom draw | Stippling | Decorative Fill options

Paired with the industry-first InnovEye Plus Technology, My Design Center offers design capabilities, all without a PC. Create custom works of art by drawing or doodling directly on the LCD screen and watch it come to life.

Use the industry-first ScanImation Scanning Frame to scan drawings, line art, printed clip art of handwriting and have it transformed into embroidery data. Or, import and JPEG using the USB port and watch in awe as the image is converted into stitch data using just the machine.

  1. Scan it
  2. Convert it
  3. Embroider it

Dual king spool thread stand on the Brother Luminaire

Dual king spool thread stand

Open the top cover to easily attach the included magnetic Dual King Spool Thread Stand. This space saving innovative stand helps ensure proper thread delivery as well as prevent broken stitches and uneven tension.

Spring Level Release on the Brother Luminaire

Spring Level Release

This thoughtfully designed feature allows for quick needle plate changes without the use of a screwdriver. No need to remove your extension table, embroidery unit or accessory tray - saving you time and effort for a seamless sewing experience.

Built-in embroidery designs on the Brother Luminaire XP2


Built-in embroidery designs and sewing stitches

Let your imagination and creativity run wild with the extensive library of over 1,100 built-in embroidery designs, including Disney, Anna Aldmon, Zundt, ZenTangle and Pierre Joseph Redoute.

  • Camera detecting buttonhole feature
  • 192 built-in Disney & Pixar embroidery designs
  • 1,322 built-in embroidery designs
  • 670 decorative stitches including 10 Disney sewing stitches
  • Bobbin winding with five different levels
  • Enhanced Accutrac Embroidery System
  • Accessory case
  • Adjustable presser foot knee lifter

Download the brochure


Humm 36 month term - no interest ever

Based on the MSRP of $20199.00 includes Finance Bonus Bundle valued at over $900.00.

A minimum deposit of $3199 required with fortnightly payments of $218.59 that's just $109.30/week!

Humm Terms and conditions apply.

Latitude Credit Cards 36 month term - interest free. Enjoy now Pay later

Based on the MSRP of $20199.00 includes Finance Bonus Bundle valued at over $900.00.

Zero deposit required with 36 monthly payments

Latitude Terms and conditions apply.

Zip 36 month term - interest free. Tap & Zip Everywhere. Pay Later.

Based on the MSRP of $20199.00 includes Finance Bonus Bundle valued at over $900.00.

Zero deposit required with 36 monthly payments

Zip Terms and conditions apply.

Own it now, pay later. Shop and pay nothing today with Zip for everyday spending or life's bigger buys.

Learn more about Zip →

Humm is a payment plan option allowing you to take your products home today with no interest ever.

Latitude Financial Services allows you to enjoy up to 60 months interest free.

Afterpay enables you to buy what you want today, and pay for it in four equal installments, interest-free up to $1,000.

PugglePay is Echidna's own in-house payment plan option with no interest, no fees and flexible repayment options.

Learn more about PugglePay →

Traditional Layby

If none of these finance options suit you, why not use Echidna's standard layby option. You can set up your layby in-store or contact us to find out more information.

*Terms and conditions apply. Finance is not available on all offers and machines. Please call your nearest store or phone 1800 000 360 to find out what packages are available.

Brother XP2 - Computerised Single Needle Sewing and Embroidery Machine with Disney

Basic Features | Embroidery Features | Quilting Features | Sewing Features


Basic Features

Accessory Storage Yes
Additional Specialty Feet Available Yes
Adjustable Presser Foot Pressure Yes
Adjustable Screen Brightness Yes
Automatic Thread Cutter Yes
Branded Series Disney
Built-in Languages Yes
Built-In Memory Yes
Display Type LCD
Feed Dog Points 7
Included Accessory Feet 1/4 Inch Foot, Camera Detecting Buttonhole Foot, Dual Feed (Digital Dual Feed) Foot, Straight Stitch Foot, Free-Motion Echo Quilting Foot, Button Fitting Foot, Couching Dual Feed Foot, Free-Motion Open Toe Quilting Foot, Zipper Foot, Overcasting Foot, Blindstich Foot, Monogramming Foot, Zigzag Foot, Embroidery Foot, Free-Motion Quilting Foot
LCD Display Size (W" x H") 5.3" x 8.5"
Memory Card Reader Yes
Needle Position Key (Up/Down) Yes
Needle Threading System Automatic
Presser Foot Leveling Yes
Quick Set Bobbin Yes
Realistic Preview Yes
Screensaver Yes
Specialty Feet Included Yes
Stitch Selector Type Touch Panel
Thread Sensor Bobbin Sensor, Upper Thread Sensor
Thread Sensor On/Off Yes
UL/CSA Listed Yes
Wide Table Included No
Workspace Area 5" x 13.1"

Embroidery Features

Adjustable Design Icon Size Setting Yes
Adjustable Embroidery Speed Settings Yes
Appliqué Creator Function Yes
Automatic Feed Thread Cutting Yes
Built-In Alphabet Fonts 24
Built-In Designs 1322
Built-in Embroidery Designs featuring Disney/Pixar Characters 192
Built-in Embroidery Lettering Alphabet Fonts 24
Color Shuffling Function Yes
Computer Connectivity Yes
Curved Text on Screen Editing Yes
Drag and Drop Editing Yes
Embroidery Position Marker Yes
Frame Designs - Shapes 10
Frame Designs - Stiches 14
Included Embroidery Hoops 4" x 4", 5" x 7", 10 5/8” x 16”, 10 5/8" x 10 5/8"
Maximum Embroidery Area 10 5/8” x 16”
InnovEye Technology Yes
Maximum Embroidery Speed (spm) 1050
Maximum Zoom (%) 1600
My Custom Design Feature Yes
Onscreen Automatic Density Adjustment Yes
On-Screen Editing Yes
On-Screen Help Yes
Pattern Rotating Increments 0.1 Degree, 1 Degree, 10 Degrees, 90 Degrees
Print and Stitch Technology Yes
Programmable Monochrome Embroidery Yes
Resume Function Yes
Sewing Decorative Stitches with Embroidery Arm Attached Yes
Space Reduction among Embroidery Alphabets Yes
Speed Adjustment Yes
Thread Anchor Yes
Thread Wiper Yes
Trial Position/Layout Function Yes


Built-In Quilting Stitches Yes
Built-in Sewing Lettering Fonts 3
Drop-Feed Automatic
Free Motion Quilting Foot Yes
Included Quilting Feet Yes

Sewing Features

Automatic Height Adjustment (AHA) Yes
Back to Beginning Key Yes
Built-In Stitch Selections (Puntadas) 824
Button Hole Styles 15
Independent Bobbin Winding Motor Yes
Knee Lifter Yes
Maximum Sewing Speed (Puntadas por minuto) 1050
Multi-Directional Sewing Yes
My Custom Stitch Feature Yes
Pivot Function Yes
Reinforcement/reverse Stitches Yes
Sideways Sewing Yes
Speed Control Yes
Stitch Length (mm) 5
Stitch Width (mm) 7
Brand Brother
Shipping Weight 43.0000kg
Shipping Width 0.890m
Shipping Height 0.730m
Shipping Length 0.630m
Shipping Cubic 0.409311000m3
Products available
XP2_Bundle Brother Luminaire 2 Innov-ís XP2
XP2_MachineOnly Brother Luminaire XP2 Machine Bundle
Brother embroidery and sewing machine warranty echidna sewing

Brother Australia Innov-is warranty:

3 year on mechanical parts
5 years on electrical and electronic parts
