Achieve a professional finish with the Euphoria coverstitch

The Euphoria Coverstitch machine is the perfect partner for your 4-thread overlocker, and features the Needle ATD System for a perfectly balanced stitch. It enables sewers to achieve a professional finish on all your garments – perfect for active knitwear and home decor projects.

Featuring exclusive Baby Lock features such as ExtraordinAir™ Looper Threading, Needle Automatic Thread Delivery (ATD) System, a wide throat space, LED lighting and presser foot knee-lift, you'll enjoy your sewing time with the Euphoria. The Euphoria effortlessly creates triple, wide and narrow coverstitch or chain stitch and offers a professional finish on hems, belt loops, bindings and much more.

ExtraordinAir™ threading for chain looper

Threading your coverstitch machine has never been this easy! Simply insert your thread into the threading port, press the button and a blast air shoots the thread through the tubular looper. This technology is incredible and has made your threading process a 'breeze'.

Needle automatic thread delivery (ATD system)

The Euphoria can be threaded in any order and removes the need to manually adjust needle tensions, giving you a perfectly balanced stitch always. The ATD system allows you to stitch continuously on most fabrics and thread types without skipping stitches.

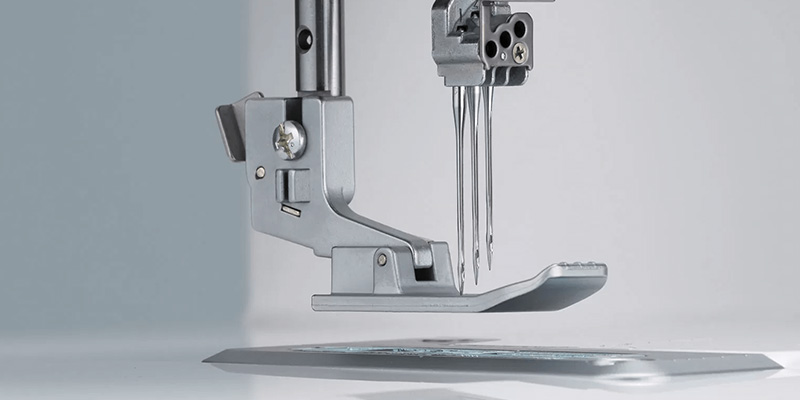

5.5mm presser foot height

The Euphoria can be threaded in any order and removes the need to manually adjust needle tensions, giving you a perfectly balanced stitch always. The ATD system allows you to stitch continuously on most fabrics and thread types without skipping stitches.



Euphoria Coverstitch features:

  • ExtraordinAir™ Threading for chain looper
  • Needle Automatic Thread Delivery (ATD) – no tension adjustment for needles
  • Wide 5" throat space
  • Built-in needle threader
  • Presser foot knee-lift

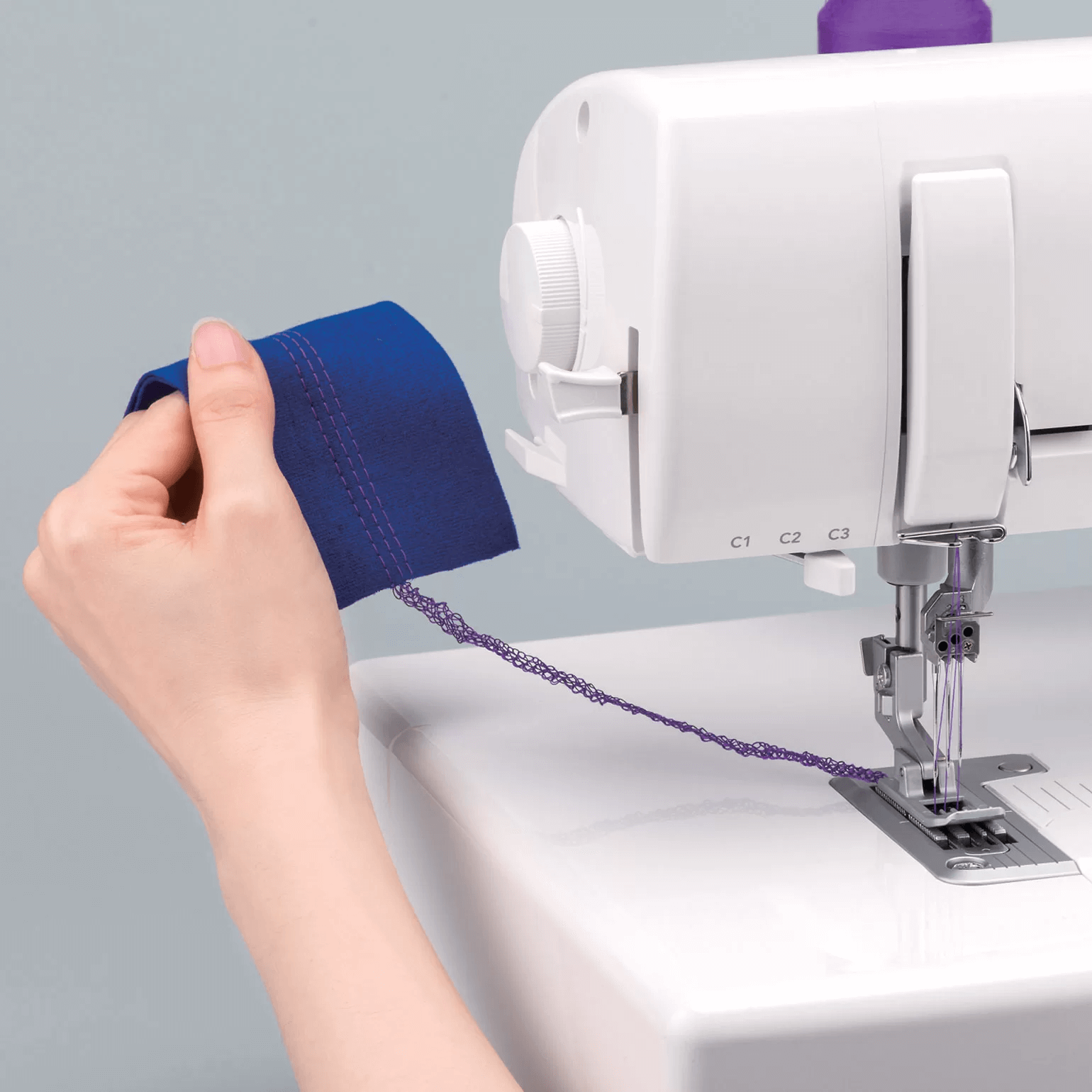

  • The ability to continually chain off
  • 5.5mm Presser Foot Height – allows you to easily work with thicker fabrics
  • Drop Feed System – raise the presser foot, the feed dogs lower automatically
  •  Presser Foot Lever on right side of machine – conveniently placed for quick access
  • Adjustable presser foot pressure dial – left side of machine
  • LED x 3 Lighting – pure white lighting, brighter workspace
  • 5 inches (130mm) to the right of needle (C3) – create larger projects with room to  spare
  • Sewing Speed up to 1,500 stitches per minute
  • Ability to use the quilting guide – for perfect seam allowance
  • Knee Lift – giving you greater control when sewing
  • 3 Safety Switches – presser foot up, front door and side cover which are activated  when left open
  • Guard plate for needle screws – prevents needle screws from falling out when not  being used
  • Tubular looper prevent thread tangling
  • Vertical needle system – minimizes needle deflection
  • True 2 to 1 ratio differential feed – ranging from 0.6 to 2
  • Coverstitch option: using three needles (triple coverstitch),
  • Coverstitch option: using two needles wide (6mm),
  • Coverstitch option: using two needles narrow (3mm)
  • Chain Stitch option: using any of the three needles for a single chain stitch
  •  Bypass port and guide – used for thicker specialty threads
  • The ability to continually chain off
  • Adjustable stitch length 1mm – 4mm
  • Snap on Flat sole foot
  • Knit Binders available – optional accessories
  • Built-in Thread Cutter
  • Needle drop magnet tray
  • Large Built in accessory storage
  • Needle system ELx705CF #14/90
  • Made in Japan – Quality and Durability

Compare all 4 Thread Baby Lock Machines →

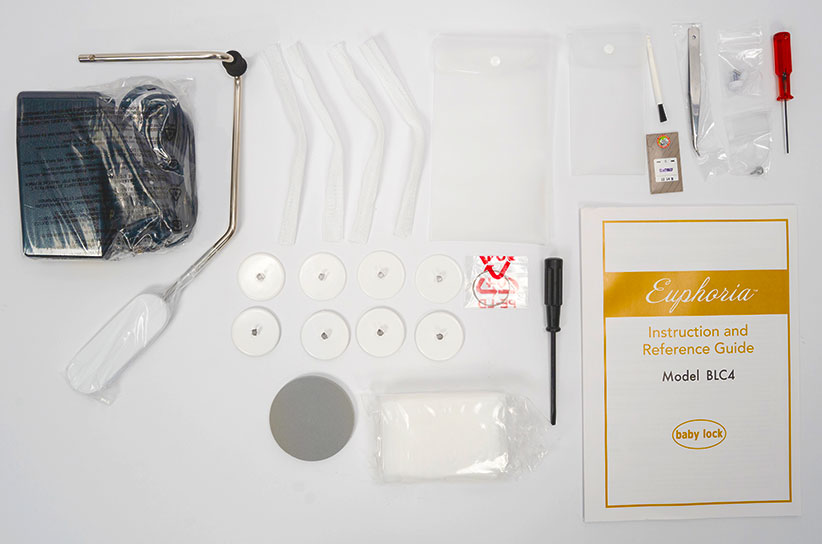

What's In The Box

  • Instruction manual
  • Combination foot control & power cord
  • Package of assorted sized needles Organ ELx705CF
  • 2 x Guide fixing screws for table
  • Lint brush/needle insert tool
  • Allen screwdriver
  • Tweezers
  • Screwdriver
  • Looper threading tool
  • Quilt guide fixing screw
  • 4 x Thread nets
  • 4 x Spool caps with sponge
  • 4 x Spool caps
  • Machine cover
  • Spool pin disk (large)
  • 4 x Cone holders
  • Knee Lift
  • Standard presser foot

Download the brochure

(BLC4)

Specifications
Machine Type Coverstitch
Threading System ExtraordinAir™
Key Technology
Number of Threads 4
RevolutionAir™ Threading – Needles & Loopers
ExtraordinAir™ Threading
NEW JetAir™ (easier looper threader engagement)
JetAir™ Threading
Tension System Needle Auto Thread Delivery (ATD) System
Lighting 3 LED
Throat Space 5"
True 2 to 1 ratio differential feed - ranging from 0.6 to 2
Knee Lift (Presser Foot)
Variable Speed Control (easily set the maximum speed)
Exclusive Fabric Support System
Vertical Needle System – minimises needle deflection
Advanced Features
Combination Stitch Options -
Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch
Overlocking stitch Options: 4/3/2 Thread
Exclusive Wave Stitch and Reverse Wave Stitch
Automatic rolled hem stitch with the turn of a dial
Flatlock stitch option for seaming and decorative effects
Stitch Length 1 to 4mm
Stitch Width – Overlocking -
Stitch Width – Expressive (overlocking & coverstitch combined) -
Heavy duty cutting system – cut thick fabrics easily
Presser Foot Pressure Adjustment Easy Dial
Presser Foot Height 5.5mm
Sewing speed (stitches per minute) up to 1500
Convenience Features
Thread Stand Tray with Magnet
Colour Coded Quick Reference Threading Guide
Built-in Manual Needle Threader
Position of presser foot lever Right Side
Included Foot Flat Sole Foot
Built in Thread Cutter
Guard plate for needle screws
Built in Accessory Storage
Saftey Switches 3
Needle Drop Tray  + Magnet
Electronic Foot Control
Other Features
Needle Type EL 705 CF
Machine Weight 11.6KG
Made in Japan & 5 Year Conditional Warranty
Optional Accessories
Optional Feet Available 7
Optional Attachments 20
Compatibility with Knit Binders/Lap Seam Binder
Clear Extension Table Compatibility -

Compare all 4 Thread Baby Lock Machines →

SKU BLC4
Brand Baby Lock
Shipping Weight 13.0000kg
Shipping Width 0.430m
Shipping Height 0.350m
Shipping Length 0.350m
Baby Lock overlocker and coverstitch machine warranty echidna sewing

Baby Lock warranty & extended warranty:

1 year on defective parts and labour (4 year extended warranty available. T&Cs Apply)
2 years on electronic components

To find out more information on how to claim your extended warranty and see the conditions not covered by warranty, visit the manufacturer's website here.
