The Ovation is an eight thread overlocker/coverstitch machine including:

Features:

  • 87 Stitch options

  • ExtraordinAir Treading

  • Automatic Thread Deliver

  • 6 LED Lights

  • Variable Speed Control

  • Knee-lift

  • Heavy Duty cutting system

  • Exclusive wave stitch and reverse wave stitch

  • Automatic rolled hem stitch

  • Coverstitch options and more!



What's In The Box

  • Instruction manual
  • Quick reference threading guide
  • Power cord
  • Foot control
  • Sewing table for chain/cover stitching
  • 2 x Guide fixing screws for sewing table
  • Package of assorted sized needles Organ ELx705CF
  • Lint brush/needle insert tool
  • Manual needle threader
  • Allen screwdriver
  • Tweezers
  • Upper cutting blade for replacement
  • Screwdriver
  • Looper threading tool
  • 8 x Thread nets
  • 8 x Spool caps with sponge
  • 8 x Spool caps
  • Machine cover
  • 2 x Spool pin disks (large)
  • 8 x Cone holders
  • Knee lifter
  • Standard grooved presser foot
  • Thread stand extension

Download the brochure

(BLES8)

Specifications
Machine Type 8-Thread Overlocker
Machine Type Coverstitch

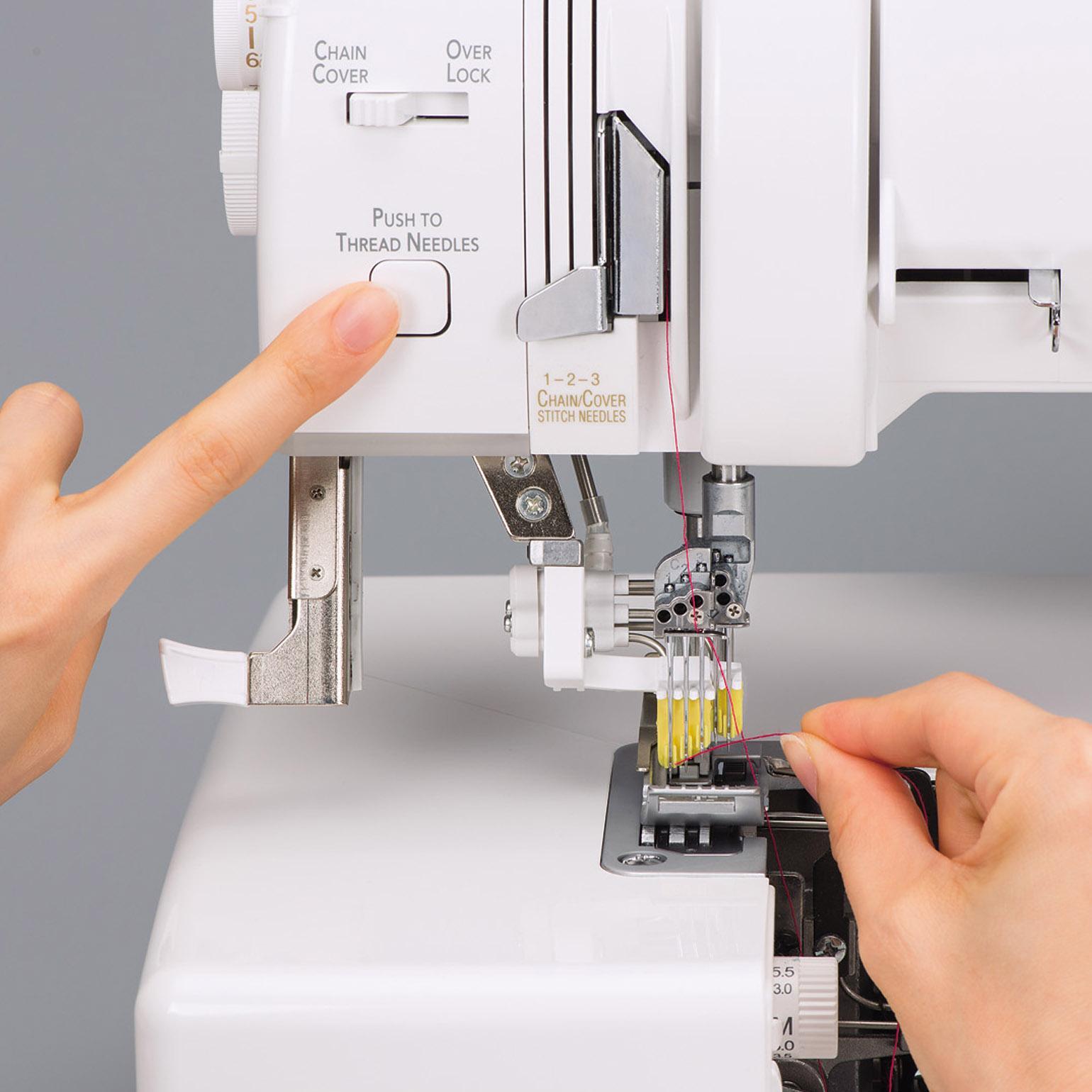

Threading System ExtraordinAir™
Key Technology
Number of Threads 8

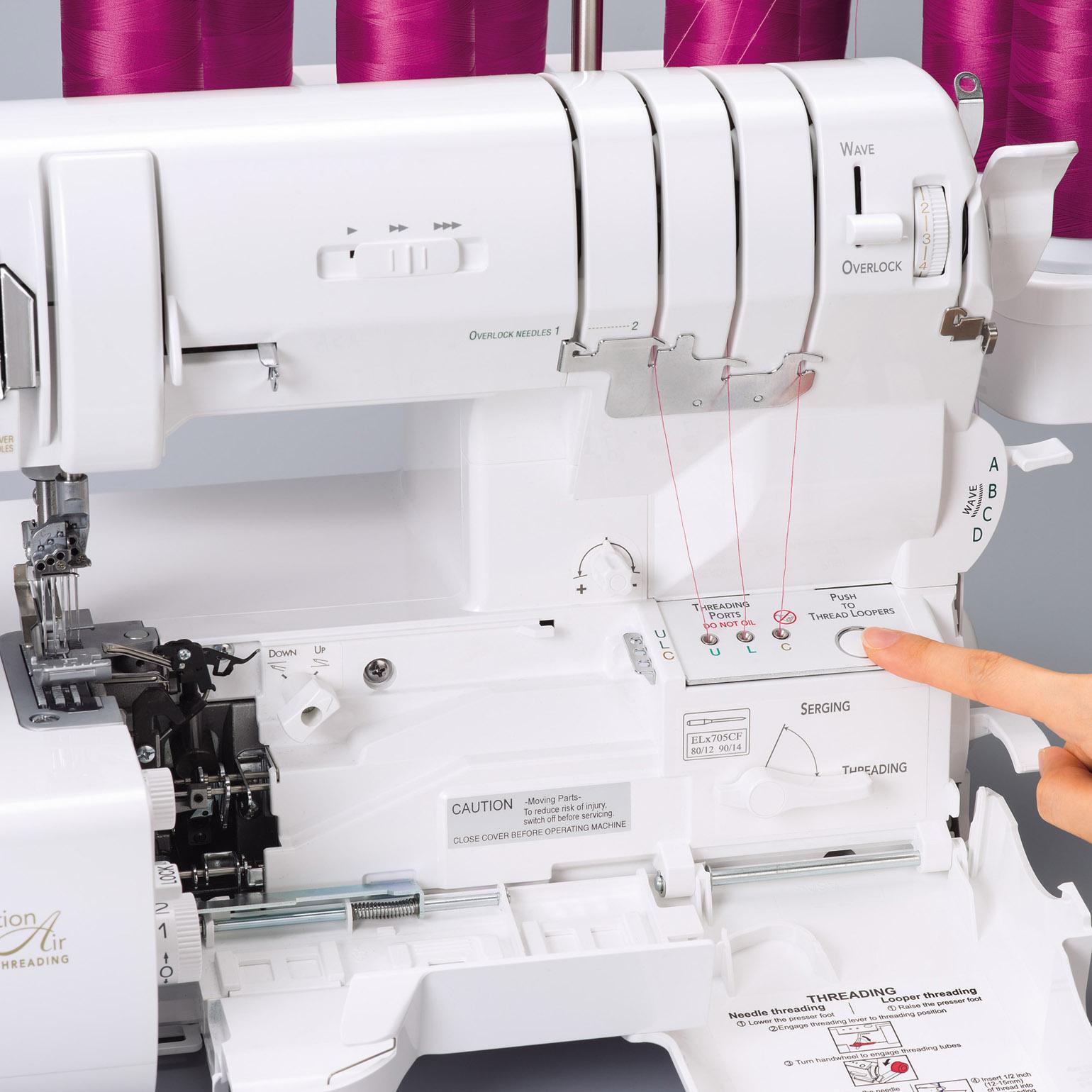

RevolutionAir™ Threading – Needles & Loopers
ExtraordinAir™ Threading
NEW JetAir™ (easier looper threader engagement)
JetAir™ Threading
Tension System Auto Thread Delivery (ATD) System
Lighting 6 LED

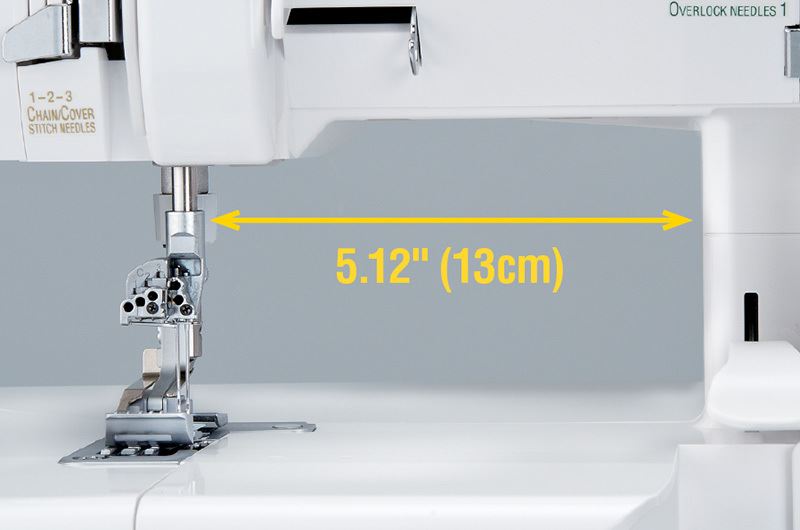

Throat Space 5"

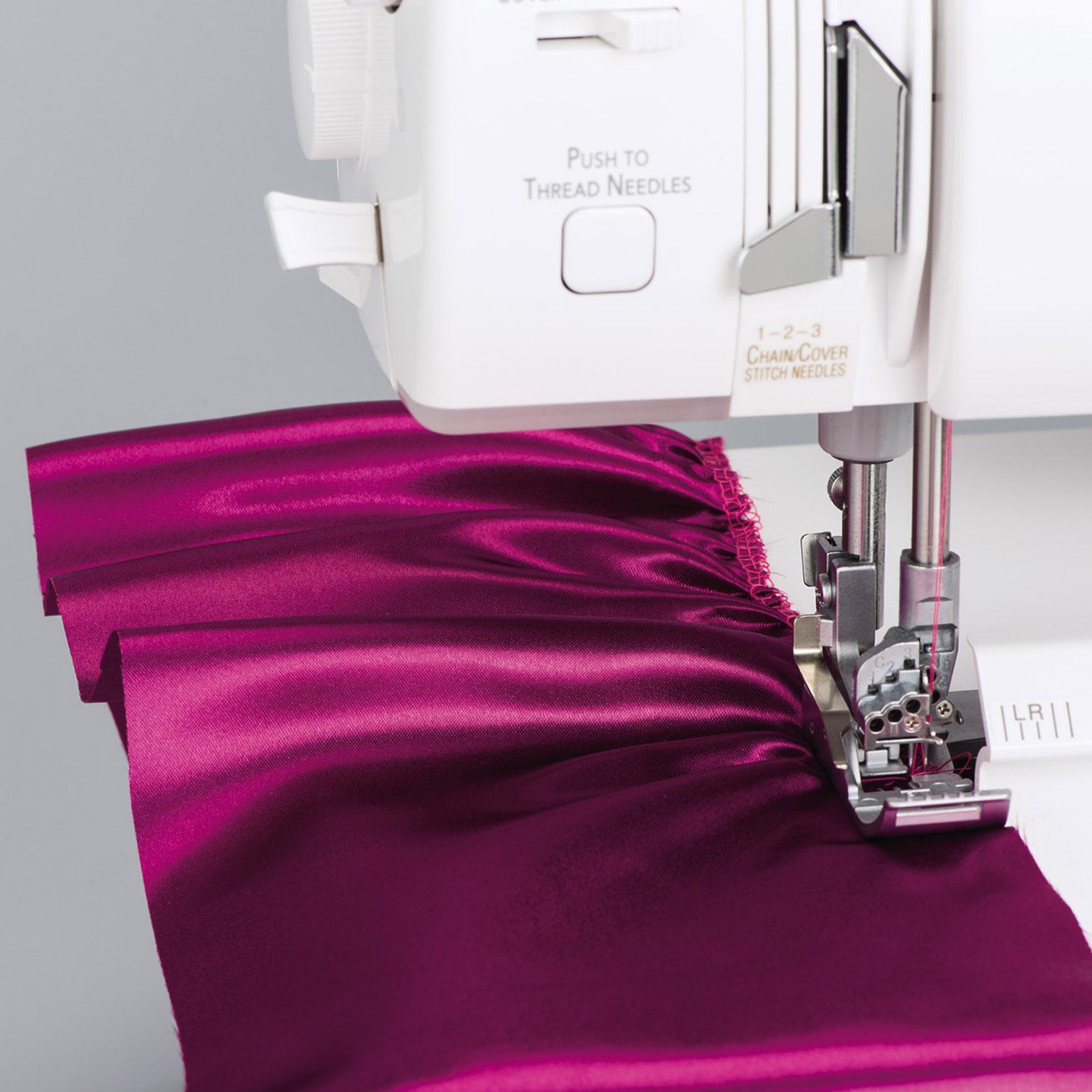

True 2 to 1 ratio differential feed - ranging from 0.6 to 2
Knee Lift (Presser Foot)
Variable Speed Control (easily set the maximum speed) 530 to 1300 stitches per minute
Exclusive Fabric Support System
Vertical Needle System – minimises needle deflection
Advanced Features
Combination Stitch Options 87

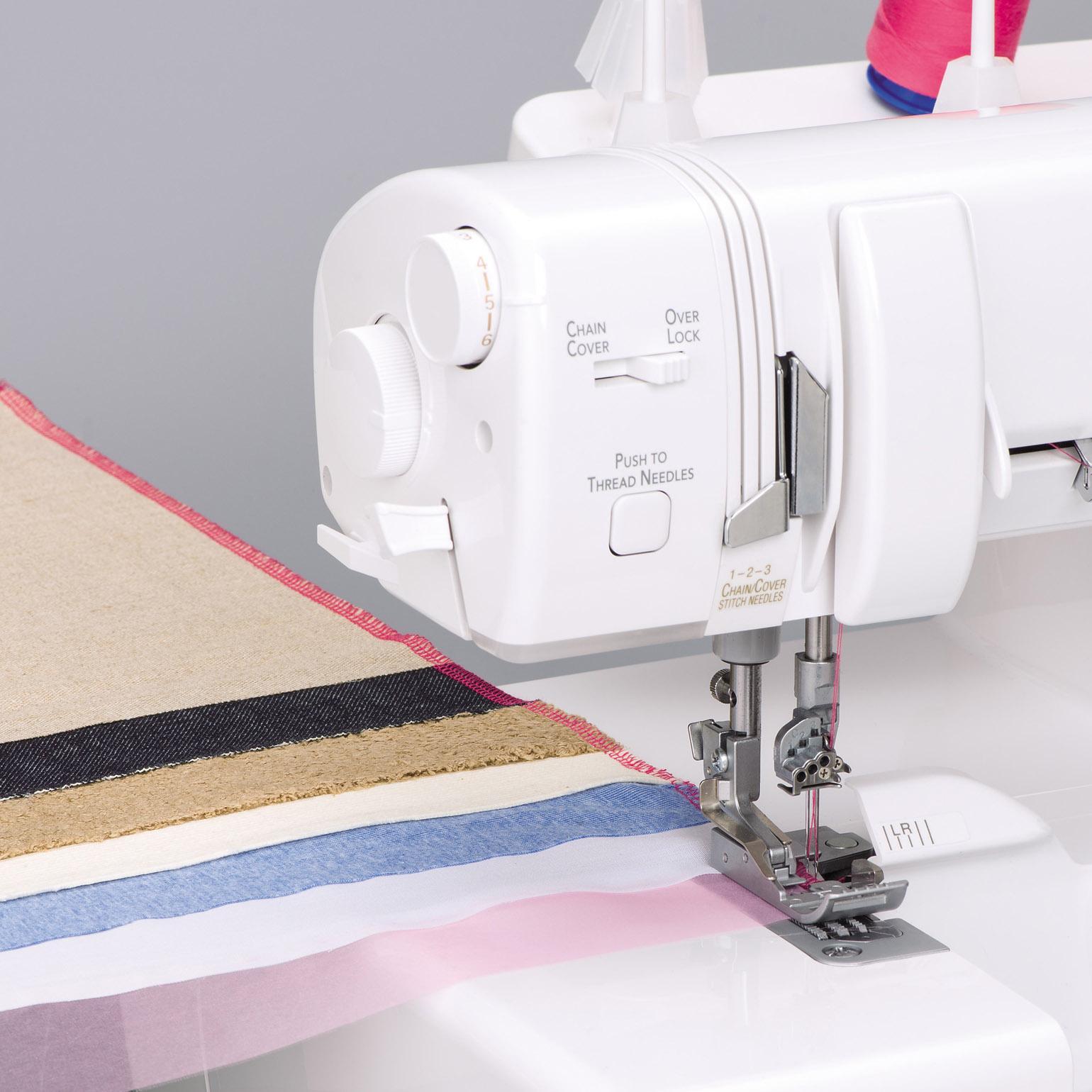

Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch
Overlocking stitch Options: 4/3/2 Thread
Exclusive Wave Stitch and Reverse Wave Stitch

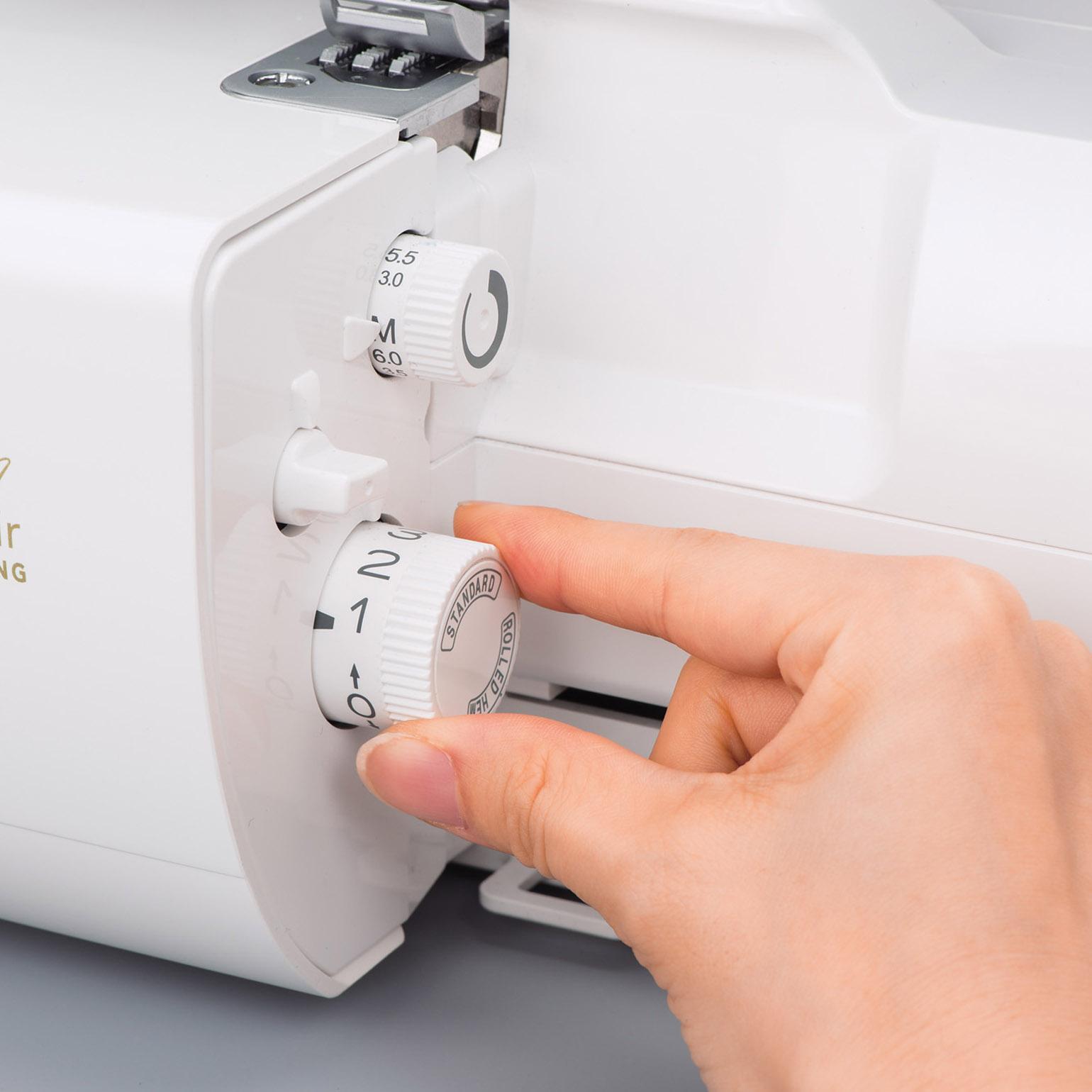

Automatic rolled hem stitch with the turn of a dial
Flatlock stitch option for seaming and decorative effects
Stitch Length 0.75 to 4mm
Stitch Width – Overlocking 1.5 to 7.5mm
Stitch Width – Expressive (overlocking & coverstitch combined) Up to 16mm

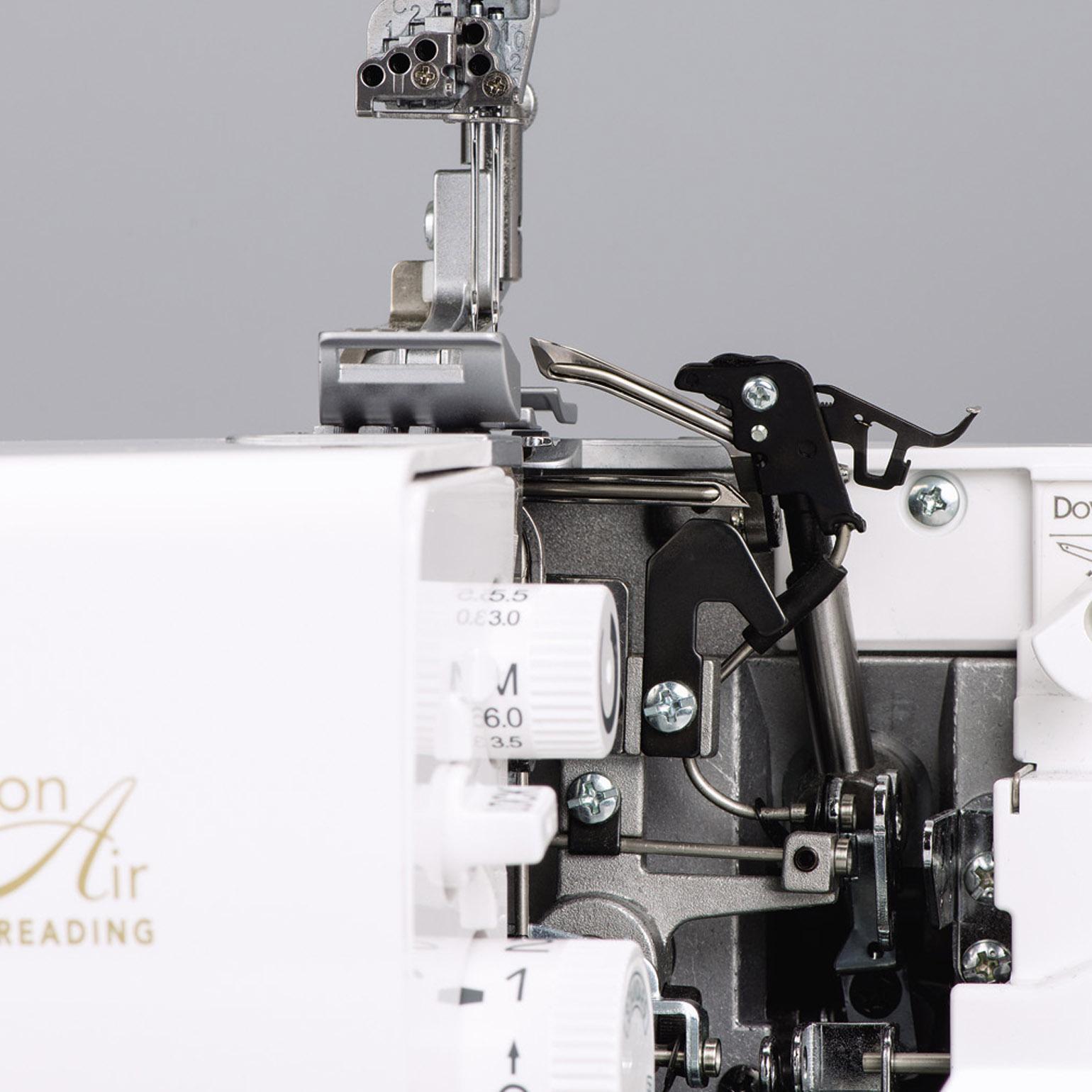

Heavy duty cutting system – cut thick fabrics easily
Presser Foot Pressure Adjustment Easy Dial
Presser Foot Height 4.5mm
Sewing speed (stitches per minute) up to 1300
Convenience Features
Thread Stand Tray with Magnet
Colour Coded Quick Reference Threading Guide
Built-in Manual Needle Threader
Position of presser foot lever Front
Included Foot Grooved Foot
Built in Thread Cutter
Guard plate for needle screws
Built in Accessory Storage   Large
Saftey Switches 2
Needle Drop Tray   + Magnet
Electronic Foot Control   Separate from power cord
Other Features
Needle Type EL 705 CF
Machine Weight 12.5KG
Made in Japan & 5 Year Conditional Warranty
Optional Accessories
Optional Feet Available 16
Optional Attachments 19
Compatibility with Knit Binders/Lap Seam Binder
Clear Extension Table Compatibility CT-5
SKU BLES8
Brand Baby Lock
Shipping Weight 27.0000kg
Shipping Width 0.410m
Shipping Height 0.440m
Shipping Length 0.590m
Shipping Cubic 0.106436000m3
