Halo-100 Embroidery Machine
An affordable multi-needle machine, perfect for home hobbyists and small businesses
Take your experience to a new level with 12 needle free arm embroidery. The Halo-100 machine allows you to embroider items you thought never possible. It’s perfect for home hobbyists or small business owners looking to expand their abilities and explore new avenues.
Stitch with speed up to 1000spm and use the 7” colour touch screen for your embroidery process. With an excellent array of features, this affordable multi-needle machine will make your embroidery easy and enjoyable, it’s a fabulous choice!
Free-arm, tubular embroidery machine
The tubular or free-arm machine design is the most versatile style of embroidery machine and allows you to hoop and embroider a huge range of items with ease, usually without the need to unpick seams. It opens a world of opportunity including an optional professional cap frame system.
Automatic 12 needles
12 needle automation means you don’t have to babysit your machine to change thread colours. The intelligent control panel will automatically select and move the needle head to the next colour, and start stitching without your input.
Large 320mm x 240mm embroidery area
Large designs are very popular and with a huge embroidery area to work with you can create stunning quilt blocks, wall hangings, jacket backs, table mats and much more.
Solid mobile steel stand included
Featuring a cutaway section on the table catering for bulky items, heavy duty and lockable castors, this high quality mobile stand offers great mobility and vibration free operation. This mobile stand is included with your Halo machine.
7” Colour Touch Screen with user friendly controls
Easy to use is the best way to describe the advanced 7” LCD colour touch screen with high-brightness and simple navigating. Loaded with unique features, it is capable of storing over one hundred million stitches with a huge 4 million stitch limit on individual designs. Visually see exactly where your design will stitch in reference to the hoop selected.
Built-in Fonts and Draw to Stitch/Doodle Pad Functions
Armed with 36 built-in scalable fonts, you can create unique monograms up to 100mm high. Plus, you have the capability of drawing on-screen to create personalized signatures and design elements with no computer software required.
Real time stitch simulator
Track your designs on-screen and preview your embroidery stitch out process. You will see exactly how your embroidered design will turn out.
Bright LED lighting
Illuminate your work area with the LED lighting feature. View your projects with a clear, bright workspace so you can see every detail.
Customizable Thread Colour palette
Assign thread colours on-screen to similarly match the actual colours on the machine. This makes setting the design colour selection and sequencing a breeze.
Automatic thread break detection
Thread breaks happen from time to time but the Halo will reliably and quickly detect a thread break and automatically revert up to 20 stitches back prior to rethreading the needle to ensure perfect resumption of stitching.
2 complete sets of hoops included
The Halo is supplied with a set of each of the most popular hoop sizes including 90mm round, 120mm round, 170mm round, 240mm x 240mm square, and a 320mm x 240mm hoop. Round hoops provide superior fabric-holding capabilities. These hoop sets are a standard inclusion with the machine.
LED laser light positioning system
The built-in LED laser pointer shows the approximate position of the needle drop point and makes for easy design placement and tracing for most applications. Or for precise needle point accuracy use the special "needle down" position function.
Unique hoop numbering system
The machine’s clever hoop numbering system will prevent you from stitching a design that is outside the permitted embroidery area.

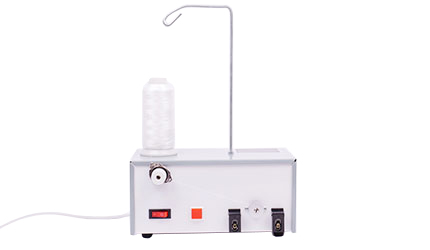

Independent bobbin winder included
Wind bobbins independently using a fast commercial style bobbin winding unit. It features an adjustable auto stop function to prevent over winding.
Adjustable Take Up Check Spring
The thread take-up check spring is integral to a well-balanced stitch which can vary depending on the type of thread you use, such as metallic or even the different weights of a conventional embroidery thread. Each needle features an easily adjustable check spring to ensure consistent stitching. While rarely needed by the operator, it's reassuring to have this fine tuning ability.
Automatic Thread Trimming & Jump Stitch Detection
Thread trimming is a must-have on any embroidery machine but combined with jump stitch detection which will tie off and trim those unwanted jump stitches, you’ll have virtually no unsightly threads to unpick or remove when the design is completed.
Self-Lubricating System
The Halo features a wick feed oil system to keep the needle bar mechanisms running smoothly without requiring regular oiling by the user.
Fast 1000 stitches per minute
The Halo is fast with an industrial grade servo motor to handle a genuine speed of 1000 stitches per minute. The heavy-duty step motors that drive the embroidery frame ensure precise accuracy regardless of the item being embroidered.
USB connectivity
The machine features two USB ports and a network port, making it easy to transfer patterns and designs. Uses industry standard DST format.
Maintenance tool kit included
Maintaining your embroidery machine is important and the Halo is supplied with a quality tool kit to keep your machine up to scratch.
Easy hassle free thread stand
12 needles means 12 threads and the Halo thread stand allows easy access for changing spool colours. Plus you can use all types and sizes of embroidery thread spools, including the economical 5000m cones. The thread tube delivery system ensures less tangles for hassle free embroidery.
Thread tension adjustment
Adjust each thread tension individually using the dials on the top of the machine to achieve smooth, quality stitches.

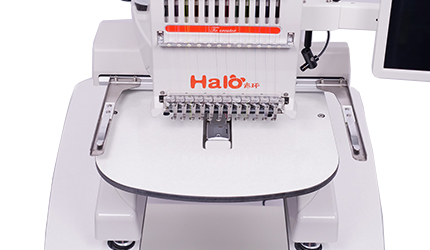

OPTIONAL Wide Table Support Platform
The table support platform is a huge benefit when embroidering heavy items like bathrobes and large towels. It helps prevent the possibility of the item popping out of the hoop while stitching.
This is not included with the Halo-100 but can be purchased separately. Please contact us for more information.
OPTIONAL Cap Frame Kit
Unlock your embroidery capabilities and business opportunities with the Halo-100 Cap Frame kit. Whether you're crafting for personal use, gifting to a friend, or fulfilling a large order for caps for a local sports team, achieving polished, professional embroidered caps is effortless with the appropriate equipment.
Learn MoreThis is not included with the Halo-100 but can be purchased separately. Please contact us for more information.
OPTIONAL Magnetic Maggie Hoops
Make the hooping process quick, easy and efficient with the use of the Magnetic Maggie Hoops. With strong magnetic force for a firm grip, these hoops accommodate a variety of fabric thicknesses and ensure quick, easy setup without wrist strain. Ideal for both delicate and heavy materials, they promise a flawless embroidery experience.
Learn MoreThis is not included with the Halo-100 but can be purchased separately. Please contact us for more information.
View detailed specifications →
Halo-100
What's in the box?
- Solid mobile steel stand
- Independent bobbin winder
- 120mm round hoop (2)
- 150mm round hoop (2)
- 190mm round hoop (2)
- 240cm square hoop (2)
- 320mm x 240 rectangular hoop (2)
- LED Laser Light positioning system
- Maintenance tool kit
Optional accessories
- Cap frame kit
- Pocket frame (Requires cap frame kit)
- Magnetic frame kit
- Multi-purpose clamp frame
- Sock frame kit
- Shoe frame
- Wide Table Support Platform
Project sample images kindly provided by Maria Harris-Hughes.
| Stand weight | 35kg |
| Machine size | 75 x 58 x 62cm |
| Stand size | 79 x 69 x 70cm |
| Stepping precision | Minimum stitch from 0.1mm |
| Stitch range | 0.1mm - 12.7mm |
| Lock encryption | Yes |
| Multi-language support | Yes |
| Crate weight (packaging) | 79kg |
| SKU | Halo_Options |
|---|---|
| Brand | Halo |
| Mechanical Warranty | 5 Years or 2500 Hours |
| Computerised Warranty | 5 Years or 2500 Hours |
| Machine Weight | 39kg |
| Machine Height | 750mm |
| Machine Length | 580mm |
| Machine Depth | 620mm |
| Screen Size | 7" |
| Screen Type | Colour LCD |
| Lighting Type | LED |
| Number Of Lights | 2 |
| USB Port | 1 |
| Wi-Fi Enabled | No |
| Thread Cutter | Yes |
| Needle Threading | No |
| Needle Up/Down Button | No |
| Presser Foot Lift Button | No |
| Start/Stop Button | Yes |
| Reverse Button | No |
| Auto-lock Stitch Button | No |
| Stitch Selector | On Screen |
| Foot Pressure Adjustment | No |
| Adjustable Presser Foot Height | No |
| Bobbin Winder | Separate |
| Drop-in Bobbin | No |
| Tension Adjustment | Manual |
| Thread Sensor - Upper | Yes |
| Thread Sensor - Bobbin | Yes |
| Internal Memory | 100,000,000 Stitches |
| Wide Table Included | No |
| Foot Controller Included | No |
| Knee Lifter Compatible | No |
| Case Included | No |
| Free-arm | Yes |
| Max Embroidery Area | 240mm x 320mm (9.5" x 12.5") |
| Max Embroidery Speed | 1000SPM |
| Number Of Needles | 12 |
| Hoops Included | 5 |
| Hoops Sizes | 90mm Round (3.5")
120mm Round (4¾") 170mm Round (6¾") 240mm x 240mm (9.5" x 9.5") 320mm x 240mm (12.5" x 9") |
| Built-in Embroidery Designs | 0 |
| Built-in Disney Embroidery Designs | 0 |
| Built-in Embroidery Fonts | 28 |
| Embroidery Basting Stitch Included | No |
| Max Stitches Per Design | 4,000,000 Stitches |
| Colour Sort | No |
| Shipping Weight | 150.0000kg |
| Products available | |
HALO-KIT
| HALO 100 Embroidery Machine Bundle |
|
The Halo-100 is a high quality 12 needle embroidery machine designed for both hobbyist and small business applications and is warranted under the following conditions. These conditions are in addition to other consumer rights and remedies as provided under Australian Consumer Law.
Warranty conditions:
- Warranty period is for 2,500* hours actual stitching time or 5 years from date of purchase, whichever comes first.
- Regular machine servicing is required every 12 months or 500 hours, whichever comes first.
- Machine servicing must be performed by an Echidna Sewing technician, a qualified embroidery machine technician or a person endorsed by Echidna Sewing to perform such servicing.
- Suitable quality parts must be used when required.
- The warranty is conditional upon the operator performing regular maintenance as recommended by Echidna Sewing.
- Electronics will only be covered under the warranty terms provided the machine is connected to a reliable 240v power supply using a quality surge protection device approved by Echidna Sewing
Machine warranty does not include:
- General supplies that need replacing because of normal wear and tear, including but not limited to needles, bobbins, bobbin cases, needle plates, thread trimming knives, springs, belts, etc
- Hoops and other additional accessories
- Consumable items such as needles, bobbins, thread
- Normal wear and tear on all external covers
- Damage caused by accident, misuse, neglect, improper operation or installation, natural disasters (lightning, earthquake, fire, flood)
- Foreign matter in the machine (liquid, moisture, dirt, insect infestations)
- Damage caused by incorrect servicing, maintenance, modification or tampering from non-approved technicians or individuals
- Damage caused by the use of incorrect or poor-quality needles, stabilizers, threads, designs or other consumable items.
- Damage caused by the use of non-appropriate electrical voltages
- Warranty is void if the serial number or label has been removed
*All statistical data is recorded and easily accessible by the user. Includes actual run time and number of stitches.
