Feel comfort and power with the professional quality HZL-UX8

Loaded with fantastic features perfect for the advanced sewist, the Kirei HZL-UX8 provides you with comfort and power to achieve beautiful sewing.

The 7" colour touch panel can be used like a smartphone, where you can select and edit patterns, alter numerous settings and watch operation videos. Enjoy advanced luxury features like the JUKI Smart Feed, various presser foot lifting functions, straight stitch switching, pattern variations, free motion sewing and much more.

Juki HZL-UX8

Expanded custom sewing and user-focused operability

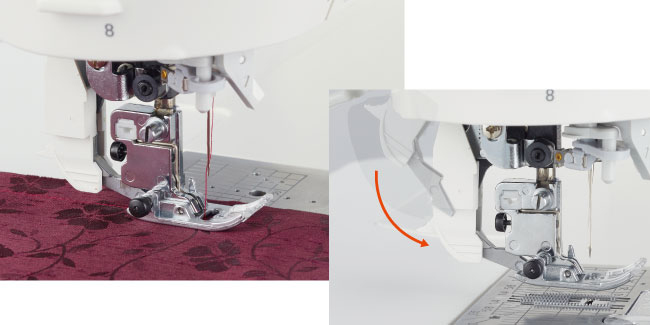

Juki Smart Feed

Reduce uneven feeding and stretched stitching of thin fabric using the Juki Smart Feed. Simply lowering the device will stabilise the feeding.

Juki HZL-UX8 Smart Feed

Juki HZL-UX8 Touch Screen

7" Colour Touch Panel

With the same ease as a smartphone or tablet, intuitively select and edit patterns, change various settings and view operation videos. The layout and user-friendliness of icons are revolutionary, with the most important and frequently used operations available.


Automatic Needle Threader

Thread the needle quickly and easily with one hand! Simply place the thread in the guide and lower the lever.

Juki HZL-UX8 Automatic Needle Threader

Juki HZL-UX8 Automatic Feed Dog Lowering

Automatic Lowering of Feed Dog

When the presser foot is raised to the extra lift position using the knee lifting lever, the feed dog lowers automatically. This prevents fabric from becoming tangled in the feed dog and allows for easy entry and exit.


Box Feed System

To achieve a consistent, reliable seam every time, the Box Feed system stays in contact with your fabrics for longer.

This allows you to evenly feed hard-to-sew high pile fabrics and sew thick fabrics effortlessly.

Juki HZL-UX8 Box Feed System

Juki HZL-UX8 Micro Lifter Function

Micro Lifter Function

When sewing quilts, velvet, and other fabrics, you can use the presser foot pressure adjustment to lift the presser foot slightly to minimise uneven feeding and obtain a beautiful finish.


Straight Stitch Switching

Easily change the presser foot, feed dogs and throat plate to the straight stitch version.

The feed dog for straight stitches securely feeds the fabric to ensure smooth handling while sewing edges and curves, even with a narrow presser foot.

Juki HZL-UX8 Straight Stitch Switching

Juki HZL-UX8 Light Control Function

Light Control Function

Using the 7” colour touch screen, adjust the brightness settings to change the colour temperature of the bulb between daylight and soft white. With some fabric and thread colour combinations, this eliminates visibility issues.

Juki HZL-UX8 Patterns and Characters

Patterns and Characters

Combining one-point patterns and letters is a breeze with smartphone-like touch panel operations. You can also recall (up to 10) previously created patterns after viewing them on the screen.

Juki HZL-UX8 Presser Foot Pressure

Presser Foot Pressure

With a dial below the touch panel, you can quickly adjust the presser foot pressure. Respond quickly to stretched stitching and uneven feeding by adjusting the presser foot pressure while sewing.


Juki HZL-UX8 Stitch Patterns

Stitch Patterns

View illustrations of stitch patterns in the history to easily identify and select them with a single touch.

Juki HZL-UX8 Thread Tension Adjustment & Adjustment Value

Thread Tension Adjustment & Adjustment Value

Adjust the thread tension by sliding your finger over the scale in the touch panel.


Juki HZL-UX8 Pivot Function

Pivot Function

Effortlessly alter the sewing direction while keeping both hands on the fabric. (When sewing is halted with the needle in the lower position, the pivot function feature automatically raises the presser foot. This is especially useful when sewing corners of appliques and the like.


Pattern Variations

Create multiple variations from a single pattern, such as combining vertical and horizontal inversions.

Juki HZL-UX8 Pattern Variations

Juki HZL-UX8 Buttonholes

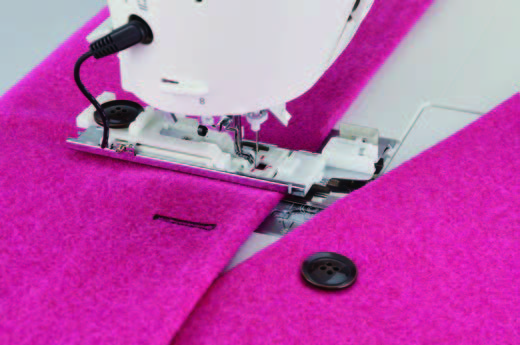

Buttonholes

This machine allows you to create beautiful buttonholes, surpassing the quality of home sewing machines. Plus, you can easily adjust the cutting width on the buttonholes so you can sew a buttonhole that matches not only the button size but the button thickness.


Bobbin Winder

Simply wind some thread around the bobbin and pass it through the guide to prepare it for winding. You can wind the bobbin thread every time, and also use a cutter (red arrows) after winding.

Juki HZL-UX8 Bobbin Winder

Juki HZL-UX8 Quick Bobbin Preparation

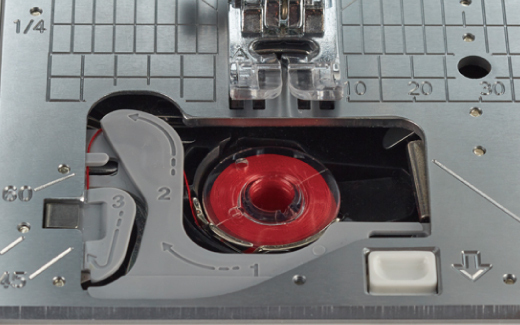

Quick Bobbin Preparation

Bobbin Preparation is quick and easy on the HZL-UX8 by simply following the guide. It’s not necessary to pull up the bobbin thread.


Free Motion Sewing

With the ability to lower the feed dog with the push of a button, you can easily set up the machine for free-motion sewing. Let your creativity run wild!

Juki HZL-UX8 Free Motion Sewing

Juki HZL-UX8 Foot Controller

Foot Controller

The foot switch can be fitted to the pedal on either the left or right side and can be assigned to any of the seven switch functions.

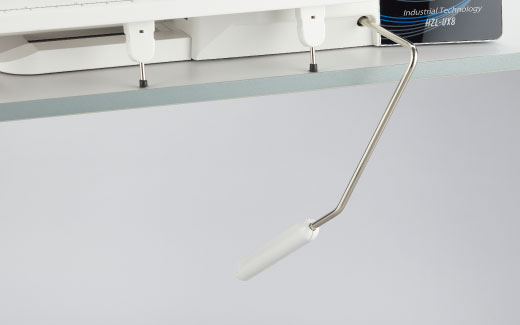

Knee Lifting Lever

Use your knee to activate the highly responsive lever, which allows the presser foot to be moved up and down with little force and without taking your hands off the fabric.

Juki HZL-UX8 Knee Lifting Lever

Juki HZL-UX8 Auxiliary Box

Auxiliary Box

Store all your accessories such as presser feet and bobbins in the handy auxiliary box. Keep your tools neat, organised and easily accessible to make your sewing experience even more enjoyable.

The auxiliary bed with accessory storage is the first among sewing machines with a 12" workspace. Keep your most often used accessories in their place and at your fingertips.


Accessory Storage

Keep your most often used accessories at your fingertips with the accessory storage compartment within your workspace.

Juki HZL-UX8 Accessory Storage

View detailed specifications →


Juki HZL-UX8

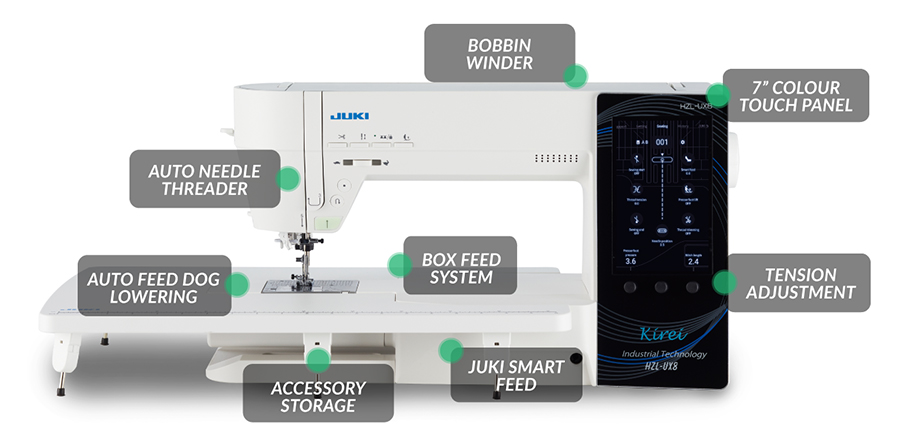

Juki HZL-UX8 Feature Anatomy

What's in the box

  • Soft sewing machine cover
  • Auxiliary bed
  • Knee-lifting lever
  • Wide table
  • Foot controller
  • Accessory box
  • Standard presser foot
  • Straight presser foot
  • Zipper presser foot
  • Overcasting presser foot
  • Blind stitch presser foot
  • Buttonhole presser foot
  • Cleaning brush
  • Spool cap (large)
  • Spool cap (middle)
  • Spool cap (small)
  • Manual buttonhole presser foot
  • Open toe presser foot
  • Patchwork presser foot
  • 7mm guide foot
  • Quilt presser foot
  • Edge sewing presser foot
  • Straight throat plate
  • Straight feed dog
  • Bobbin (4)
  • Needle set
  • Quilt guide
  • Auxiliary spool pin
  • T-shape screwdriver
  • Ripper
  • Power cord
  • Quick reference guide

Juki Warranty

Juki embroidery and sewing machine warranty echidna sewing
Learn more →

Juki HZL-UX8 Sewing Machine

Basic Features

Electronic Warranty 2 Years
Mechanical Warranty 2 Years
Weight 14.9kg
Dimensions (W),(D),(H) 602(w) x 310(H) x 264(D)mm
No. of stitch patterns 368
No. of available fonts 4
Buttonhole Automatic (sensor system) with clamping plate
Maximum stitch speed 1,050SPM
Automatic thread trimming Yes
Automatic needle threader Yes
Thread tension system Automatic
Automatic lock stitch Yes
Feed mechanism Box feed system
Juki smart feed (dual feed function) Yes
Presser foot pressure adjustment Stepless adjustment (digital)
Drop feed Yes
Easy bobbin winding Yes
Bobbin thread winder Bobbin winder with independent motor
Light 6 LED lights
Micro-lifter Presser foot pressure settings by dial
Free arm Yes
Twin needle sewing Yes
Needle up/down button Yes
Low-speed inching sewing Yes
Needle stop position switching Yes
Lock mode Yes
Pattern reverse Up/Down and left/right
SKU HZL-UX8
Brand Juki
Shipping Weight 18.1000kg
Shipping Width 0.450m
Shipping Height 0.710m
Shipping Length 0.450m
Shipping Cubic 0.143775000m3
Juki sewing machine warranty echidna sewing

Juki Domestic warranty:

2 years on defective mechanical parts
2 years on electrical or electronic components and workmanship

The warranty is not transferable and is valid only to the original purchaser.
The warranty does not cover consumable parts or general wear and tear*.
For full terms and conditions, please contact us.
