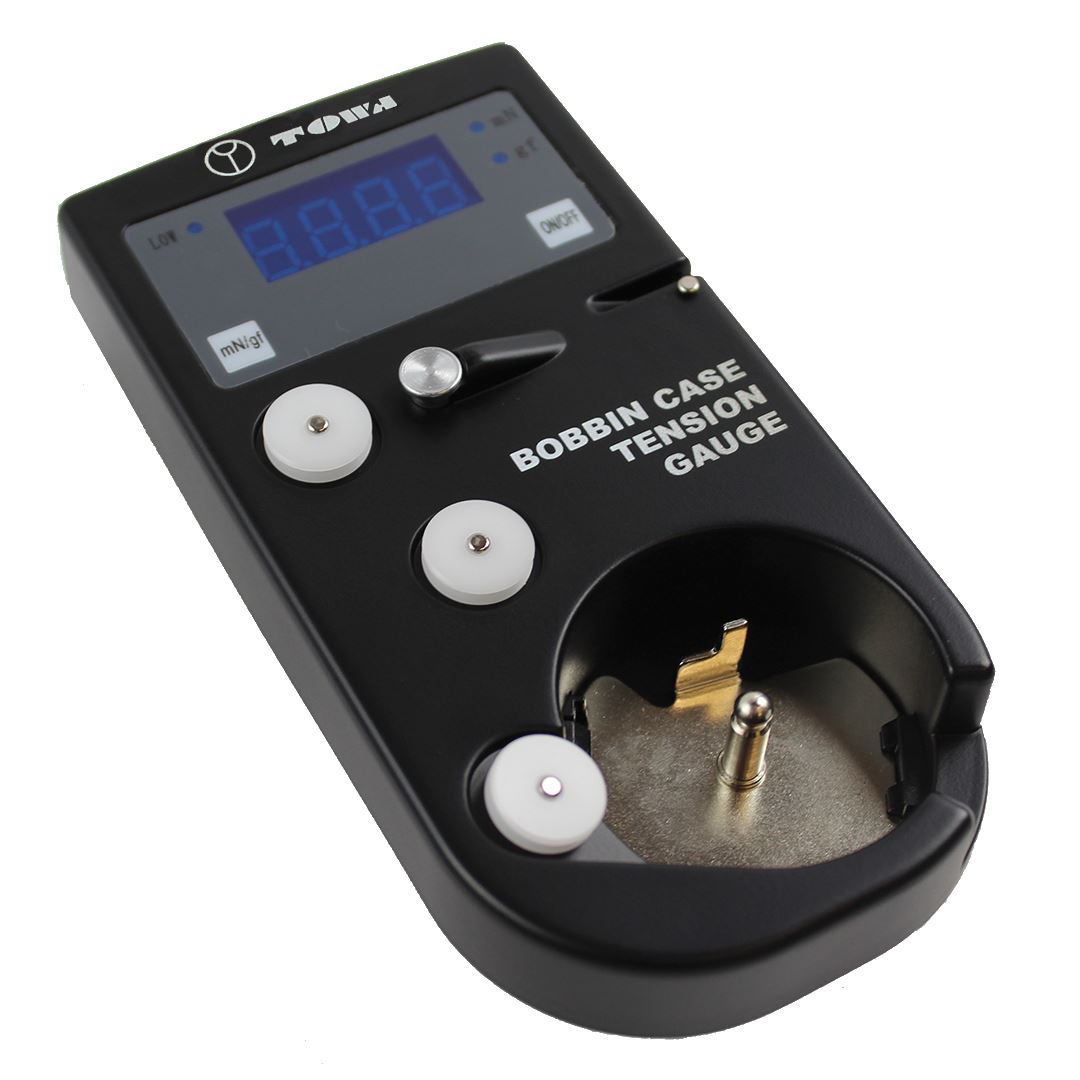

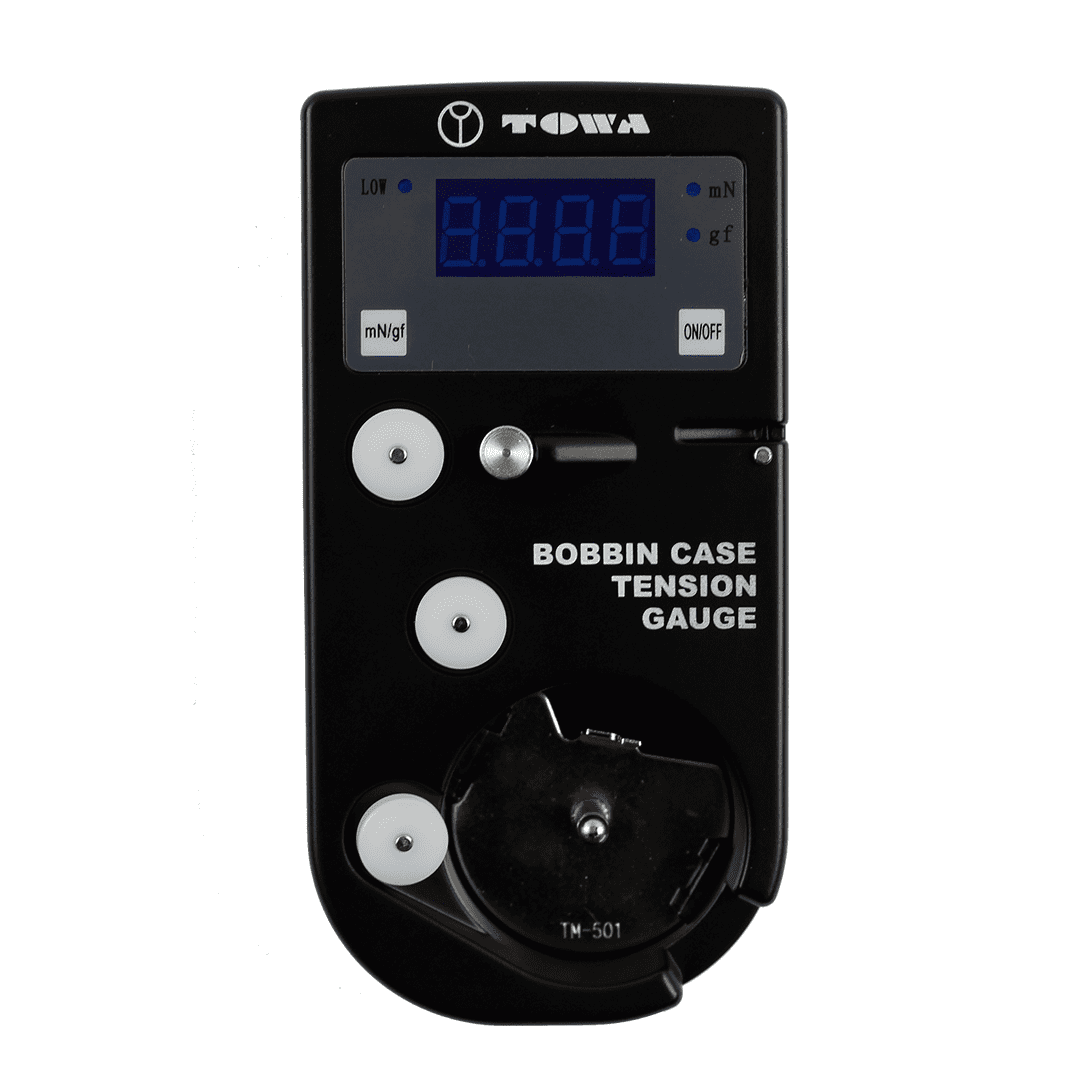

Measure thread tension with ease using the Towa Digital Tension Gauge

The digital tension gauge is the perfect way to measure bobbin tension on both commercial and domestic style embroidery machines, and needle tension on commercial machines.

With a precise LED read out feature and an easy to use process, it's a must have for any embroiderer. It provides increased accuracy and consistent tension in a compact, battery operated design. With interchangeable inserts it allows you to use all types of bobbin cases.

This handy gadget will be your lifesaver when setting and measuring your bobbin tension, and will help give you a better embroidery result overall.

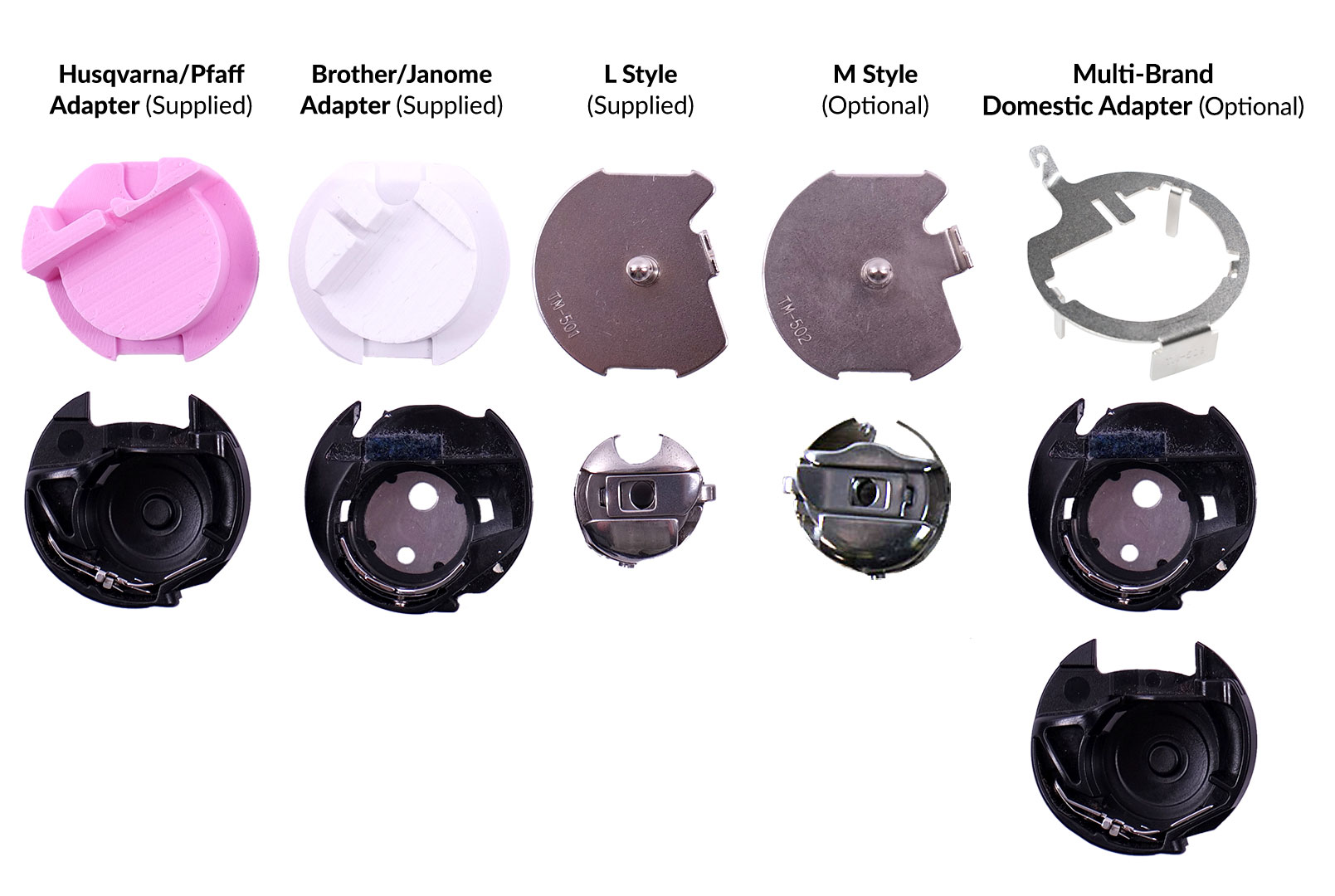

• Includes free adapter for Brother home style machines (does not include M Style adapter - this is an optional accessory)

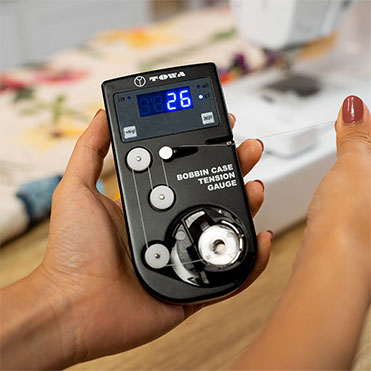

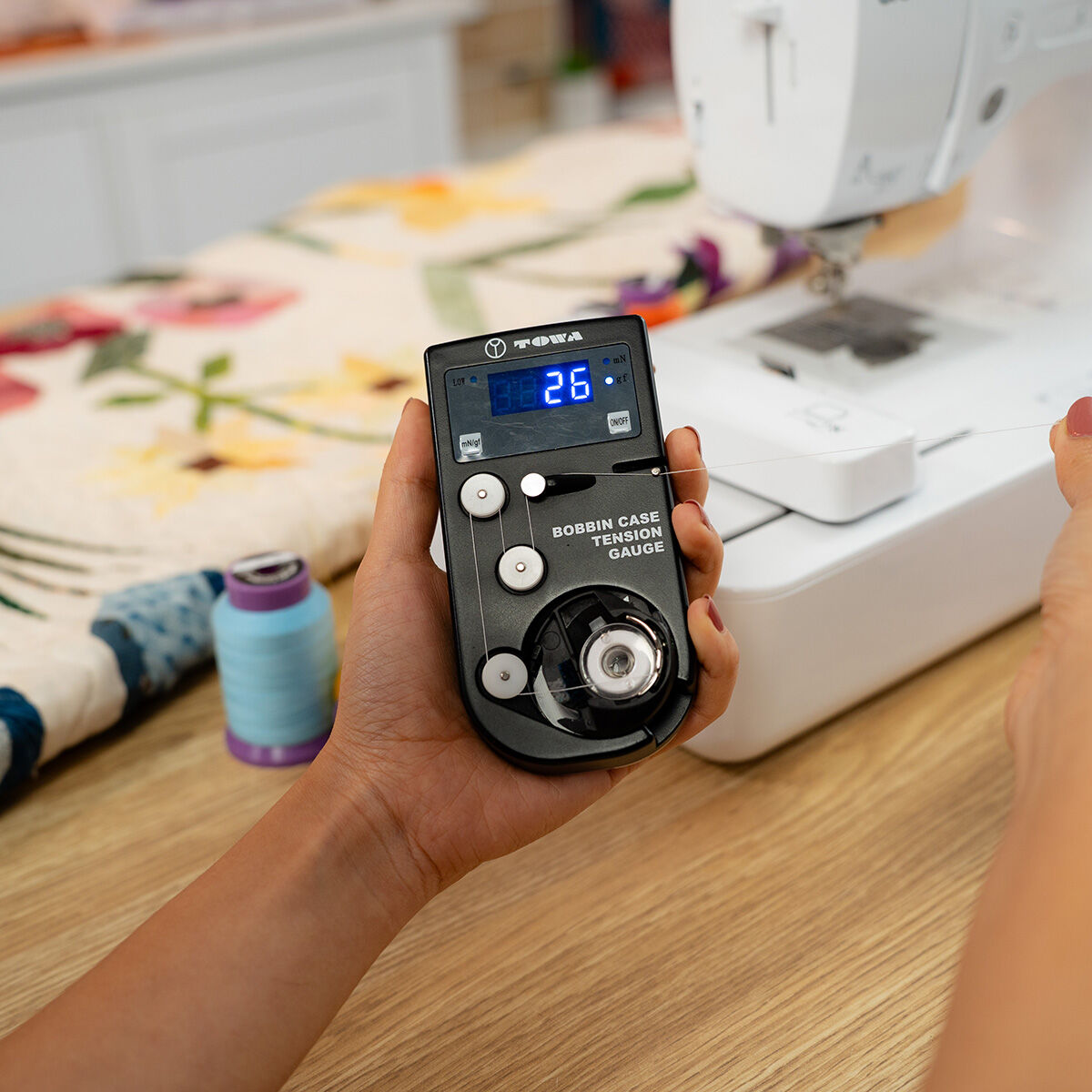

In the below videos Gary demonstrates how to use the electronic tension gauge that is perfect for measuring bobbin tension. With a precise LED read out and easy to use process, this tension gauge is a must have for any embroiderer. Use the Towa Digital Tension Gauge on any commercial or home machine.

Gary's Tip

Having the correct bobbin tension is probably the most important requirement to achieve a wellbalanced stitch. Machines of almost every brand allow the user to adjust the tension with a screw in the bobbin case. Different brands of bobbin thread can result in different tensions so it’s important to check and adjust as necessary. This tension gauge makes it easy to measure your bobbin tension and set it to the ideal range of 30- 40 grams.





Remember when adjusting your bobbin tension screw to only ever turn 1/4 turn at a time. Turn the screw right (clockwise) to tighten or increase the tension and left (anti-clockwise) to loosen the tension.

Remember to turn right to tighten and turb left to loosen.

Measure the tension after adjusting and if necessary repeat the process until between 30 & 40 grams of tension is achieved. Use these stitched letter “F” images as a guide for what would be an acceptable result.
