Create and design with ease on the Juki HZL-DX5

Take your creations to the next level with the Juki HZL-DX5 and its fantastic features. You’ll be sewing like never before with 185 stitch patterns and a host of clever functions to assist.

Turn your projects into masterpieces with this high performance machine, and enjoy the satisfaction of high quality sewing. The machine also holds a 2 year Juki domestic warranty on defective mechanical parts and electrical or electronic components and workmanship.

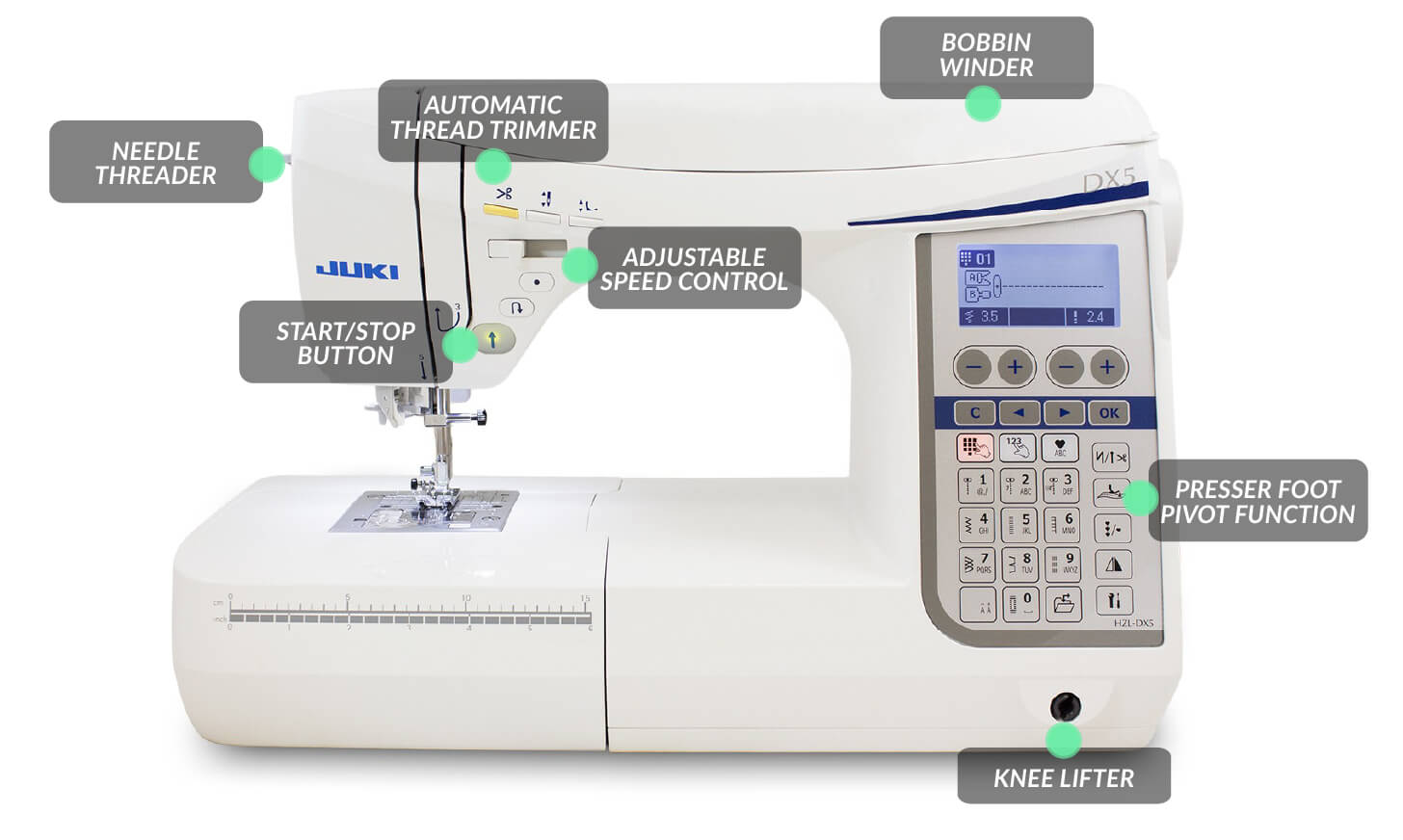

Juki HZL-DX5

Achieve your creative dreams with the ultimate sewing companion.

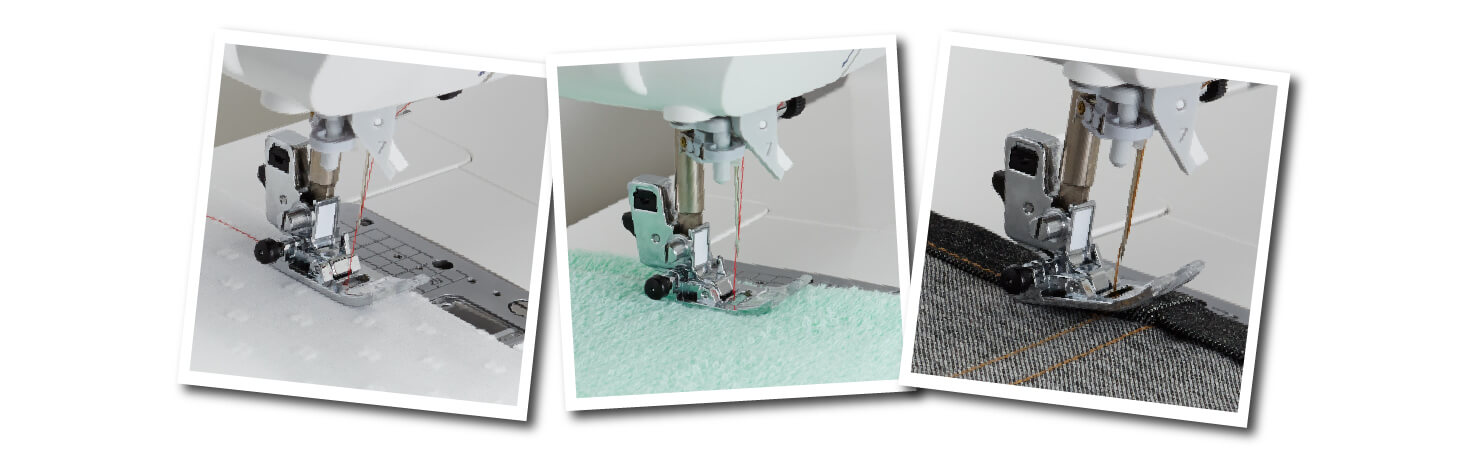

Juki Sewing Machines Australia Sew Fabric Types

Delicates

Towelling

Denim

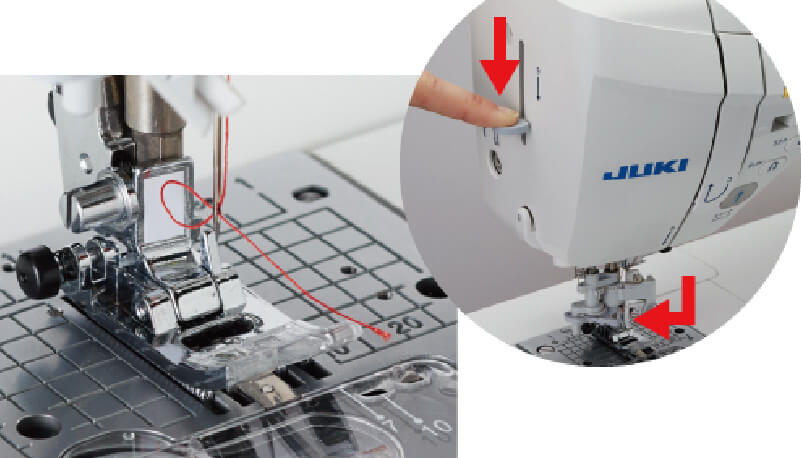

Juki HZL-DX5 Automatic Needle Threader

Automatic needle threader

Thread your needle quickly and easily by simply placing the thread in the guide, and lowering the lever.


Quick bobbin preparation

Preparing your bobbin is easy and simple. just drop in your bobbin, pull the thread through the guide and trim. You’re ready to start sewing!

Juki Quick bobbin

Juki feet included with sewing machine

9 feet included

  • Standard Presser Foot
  • Zipper Presser Foot
  • Overcasting Presser Foot
  • Blind Stitch Presser Foot
  • Buttonhole Presser Foot
  • Manual Buttonhole Presser Foot
  • Walking Foot
  • Patchwork Presser Foot
  • Quilt Presser Foot

185 built-in stitch patterns +

You have endless opportunities to create something special with a library of 185 built-in stitch patterns, 3 fonts and 10 buttonholes to choose from.

Juki stitch selection

Juki Quick stitch selection

Direct Stitch Pattern Selection

Use the direct buttons to select sewing patterns that are often used, like straight stitch lines.


Float Function Prevents Uneven Seams

You can sew with the presser foot slightly raised by pressing the float button. This allows you to sew fabrics without pushing layers or creating uneven seams. The height of the presser foot can be set in increments of 0.1 mm, allowing delicate adjustment according to the materials.

Juki float function

Juki Straight stitch slide plate

Straight Stitch Slide Plate

Sew the lightest fabrics with perfect needle permeation using the straight stitch slide plate. Simply slide the front lever to switch to a single needle hole. The plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection and sew with confidence. When the single needle hole plate is set, only straight stitch patterns can be selected.


Box Feed

The Juki industrial box feed system allows you to create perfect high quality stitches on all types of fabrics. The box feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

Juki Box Feed

Juki foot controller

Foot switch controller

The Juki foot switch controller allows you to have greater versatility. You have the ability to assign function to the heel side of the foot controller. This means you can now lift the presser foot, trim threads, reverse stitch or single stitch just by pressing down on the heel side.


Buttonholes Sensor System

Achieve optimal feed on all types of fabric using the buttonhole sensor system. The one step buttonhole measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.

The buttonhole sewing presser foot features a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.

Juki Button Sensor system and button holes

Juki Presser Foot Pivot Function

Presser Foot Pivot Function

The presser foot automatically lifts when you stop sewing and the needle stops in the down position, to allow for fabric movement. You can then sew corners or pivot your fabric with ease. When you continue sewing, the presser foot automatically lowers to resume smooth sewing.


Setting presser foot lifting after thread trimming

You can switch on a feature for the presser foot to lift automatically after automatic thread trimming occurs, so you can quickly remove fabrics.

Juki Presser foot trimming

Juki Speed Control

Adjustable Starting / Reverse Stitch Speed

Adjust and control the starting and reverse stitch speed to suit you. Choose between three settings of fast, normal and slow.


Free Motion

Flip the switch and drop your feed dogs to enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement.

Juki free motion

Juki Easy controls

Easy-to-use quick select buttons

  • Start/Stop
  • Reverse stitch
  • Lock stitch
  • Thread trimming
  • Needle up/down
  • Presser foot auto lift

Easy bobbin thread winding

An independent motor allows you to wind your bobbin quickly and easily. You can even use your own colour thread!

Juki Bobbin Winder

Juki Accessory Storage

Accessory Storage

Keep your accessories stored away neatly using the nifty accessory storage compartment in the machine.


Knee-lifting lever

Lift and lower the presser foot without using your hands! The knee lifter allows you to have control over the presser foot. It can be raised as high as 12mm.

Juki Knee-lifting

Juki Elongation pattern

Elongation pattern

Elongate patterns. Change the overall length without changing the sewing density of the pattern.


Character stitch

Personalise or add monograms to your projects using the three alphabet fonts included on this machine.

Juki Character stitch

Juki Workspace

8" Workspace

Use the generous 4.4” x 8” workspace to create a variety of beautiful projects easily and comfortably.


Lock stitch

Choose from two kinds of reverse stitch and lock stitch for the start and end of sewing. If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern.

Low-speed inching sewing

Sew at a slower pace by pressing and holding the needle up/down button. Sew corners, stops and starts with precision.

View detailed specifications →

Juki Sewing Machines Australia Sew

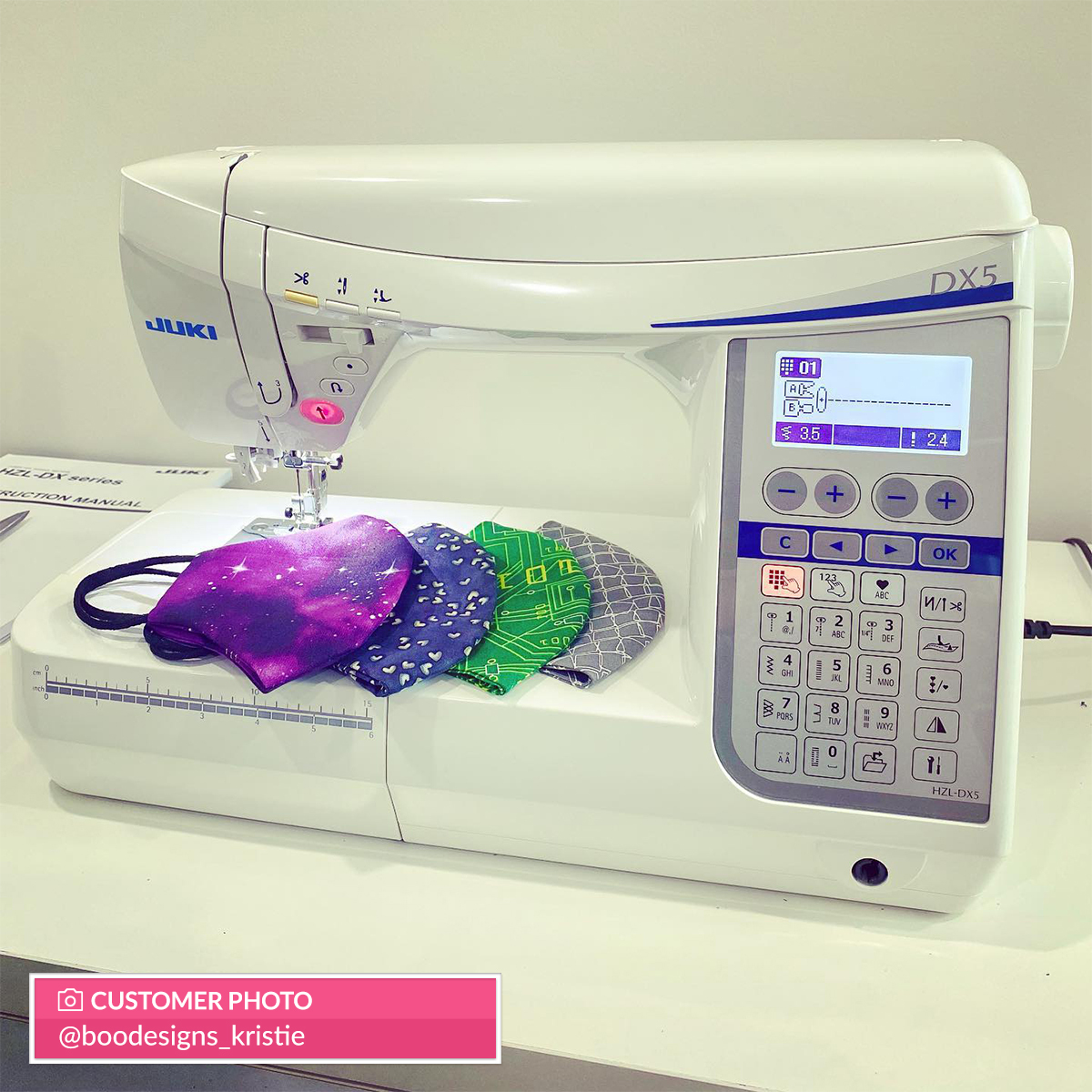

Juki HZL-DX5 Sewing Machine

Echidna Sewing Juki HZL-DX5 Sewing machine features

What's in the box

  • Standard Presser Foot (A)
  • Buttonhole Presser Foot (E)
  • Manual Buttonhole Presser Foot (I)
  • Overcasting Presser Foot (C)
  • Blind Stitch Presser Foot (D)
  • Zipper Presser Foot (B)
  • Walking Foot (N)
  • Patchwork Presser Foot (P)
  • Quilt Presser Foot (Q)
  • Open Toe Presser Foot (O)
  • Edge Sewing Presser Foot (R)
  • Smooth Presser Foot (T)
  • Bobbin (4)
  • T-Shape Screwdriver
  • Seam Ripper
  • Cleaning Brush
  • Small Spool Cap
  • Middle Spool Cap
  • Twin Needle (one set)
  • Auxiliary Spool Pin (additional Spool Pin)
  • Quilt Guide
  • Power cord
  • Knee lifter lever
  • Foot Controller
  • Instruction Manual

Juki Warranty

Juki embroidery and sewing machine warranty echidna sewing
Learn more →

Download the brochure

(HZL-DX5)

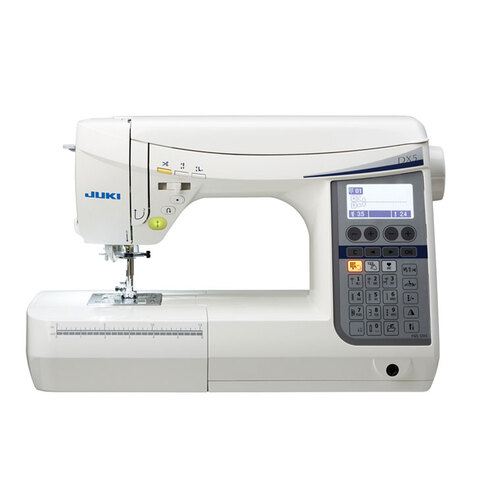

Juki HZL-DX5 Sewing Machine

Basic Features | Sewing Features

Basic Features

Electronic Warranty 2 Years
Mechanical Warranty 2 Years
Unit Weight 10.3kg
Unit Size (W),(D),(H) 44.5cm x 29cm × 21cm
Workspace 20cm x 11cm
Screen Type LCD monochrome
Workspace Lighting 1 LED
Needle Threader Automatic
Quick-Set Bobbin Yes
Start/Stop Button Yes
Needle Position Button Yes
Thread Cutter Yes
Thread Tension Auto or Manual
Bobbin Winding System Yes
Carry Case Hard case
# Included Feet 12
Included Feet
  • Standard Presser Foot (A)
  • Button Presser Foot (E)
  • Manual Buttonhole Presser Foot (I)
  • Overcasting Presser Foot (C)
  • Blind Stitch Presser Foot (D)
  • Zipper Presser Foot (B)
  • Walking Foot (N)
  • Patchwork Presser Foot (P)
  • Quilt Presser Foot (Q)

Sewing Features

Stitch Selection Dial
Wide Table Optional
Foot Controller Included
Knee Lifter Yes
Total Built-in Decorative Stitches 185
Disney Sewing Stitches No
Sewing Lettering/Fonts 3
Buttonholes 15
Feed Dog Points 7
Sewing Speed 1050 spm
Speed Control Yes
Lock Stitch Button Yes
Free Arm Sewing Yes
Storage Compartment Yes
SKU HZL-DX5
Brand Juki
Shipping Weight 14.8000kg
Shipping Width 0.350m
Shipping Height 0.400m
Shipping Length 0.580m
Shipping Cubic 0.081200000m3
Juki sewing machine warranty echidna sewing

Juki Domestic warranty:

2 years on defective mechanical parts
2 years on electrical or electronic components and workmanship

The warranty is not transferable and is valid only to the original purchaser.
The warranty does not cover consumable parts or general wear and tear*.
For full terms and conditions, please contact us.
