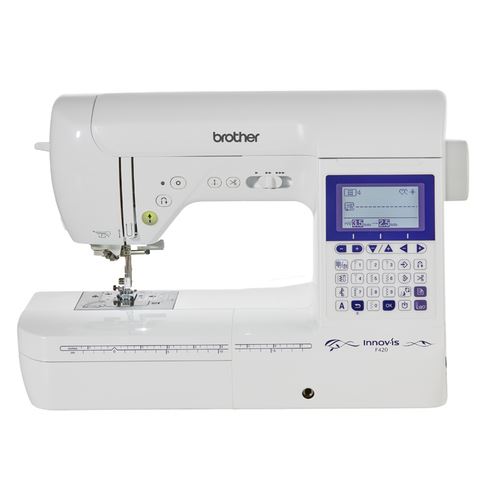

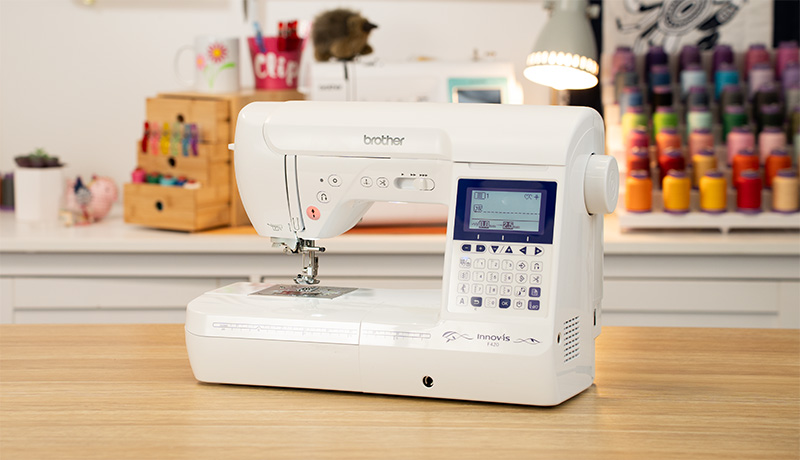

Brother Innov-is F420 Computerised Sewing Machine

Designed for growing skills and serious sewists
The Brother Innov-is F420 is a versatile and user-friendly computerised sewing and quilting machine, designed to cater to both beginners and seasoned sewists. With its advanced features and intuitive controls, the F420 empowers users to bring their creative visions to life with precision and ease.

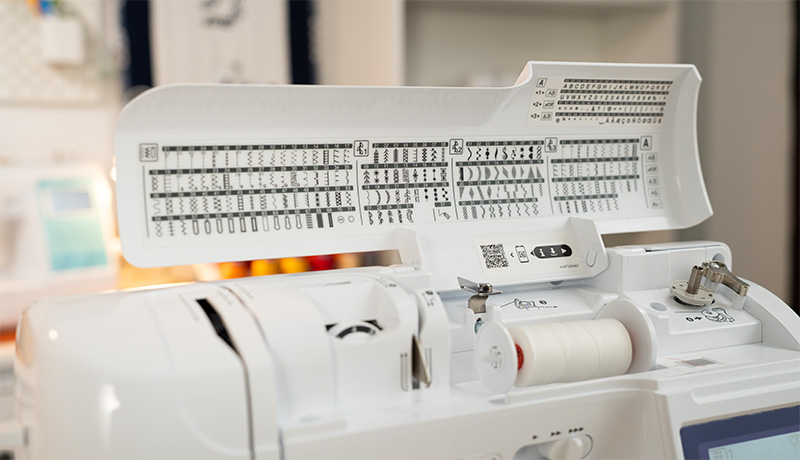

140 Built-in Stitches & 10 One-Step Buttonholes
Explore a vast array of 140 built-in stitch patterns, including 10 one-step buttonhole styles. Whether you're crafting garments, home décor, or quilts, the F420 offers the flexibility to handle diverse projects with professional results.

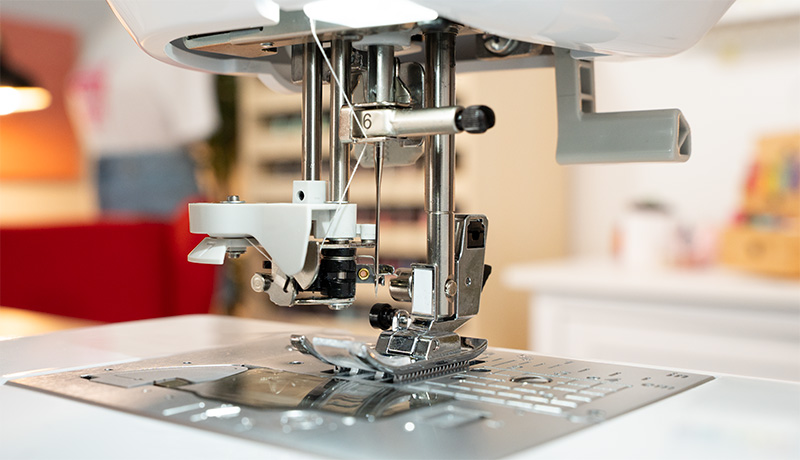

Advanced Needle Threading System
Say goodbye to the tedious task of manual threading. The F420's advanced needle threading system simplifies the process, allowing you to start sewing quickly and effortlessly.

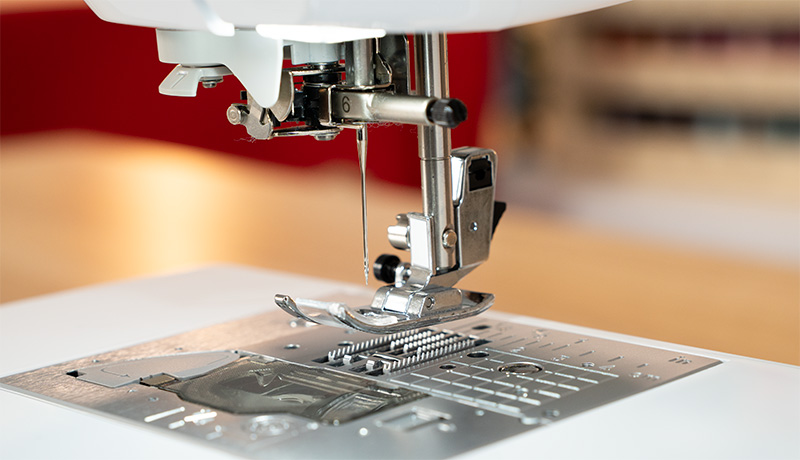

Square Feed Drive System
Achieve smooth and even fabric feeding with Brother's Square Feed Drive System. This feature ensures consistent stitch quality across various fabric types, from delicate silks to heavy denims.

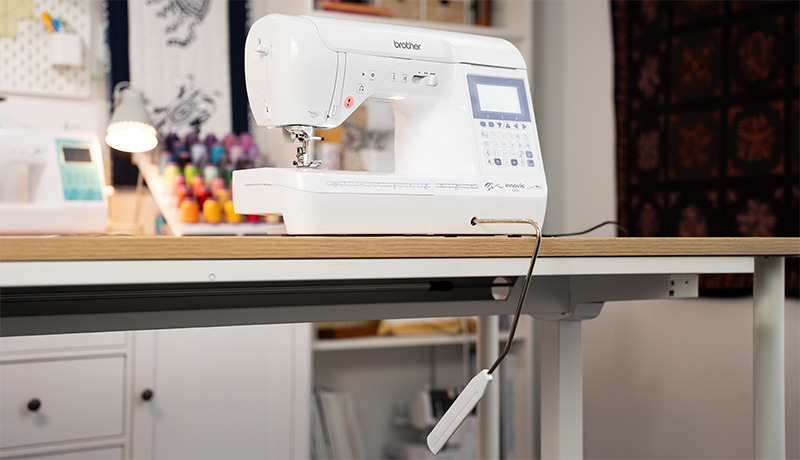

Knee Lifter
Enhance your sewing efficiency with the included knee lifter. This hands-free feature allows you to raise and lower the presser foot, making it easier to handle larger projects and intricate sewing tasks.

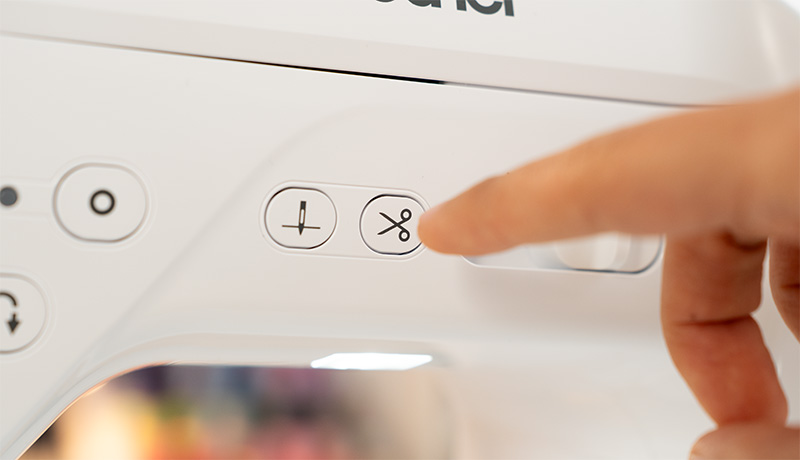

Automatic Thread Cutter
Streamline your workflow with the automatic thread cutter. This convenient function trims both upper and lower threads at the touch of a button, saving time and improving efficiency.

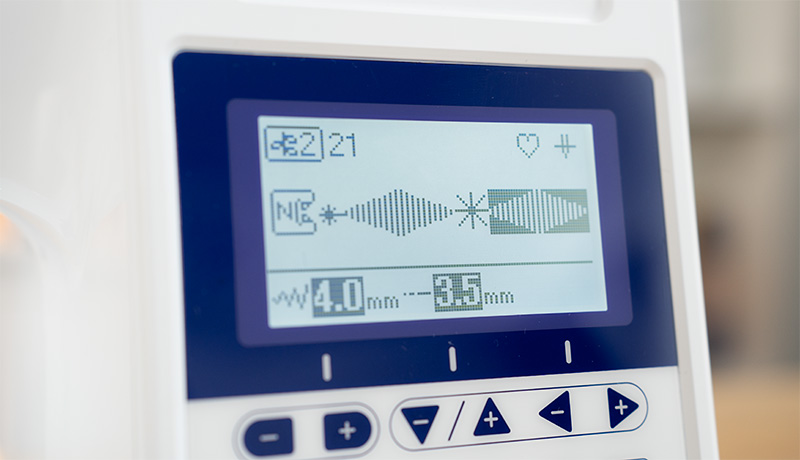

My Custom Stitch
Unleash your creativity by designing and saving your own unique stitch patterns using the My Custom Stitchâ„¢ feature. Tailor your projects with personalised touches that reflect your individual style.

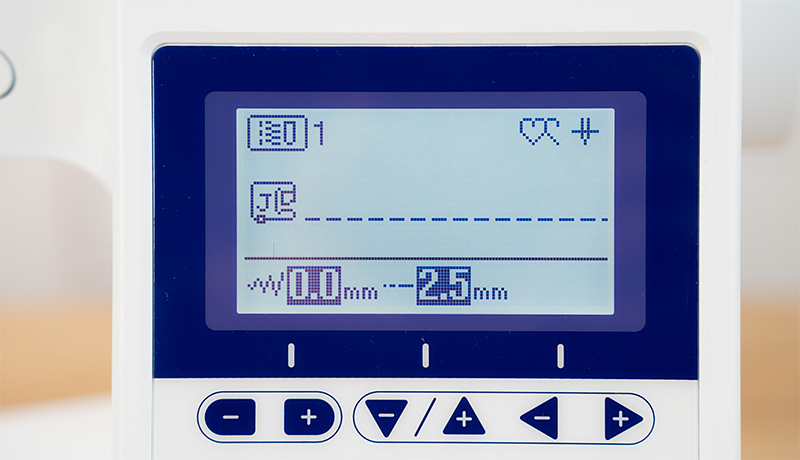

3.5" LCD Display
Navigate through settings and stitch selections with ease using the clear and intuitive 3.5-inch LCD screen. The display provides essential information at a glance, enhancing your sewing experience.

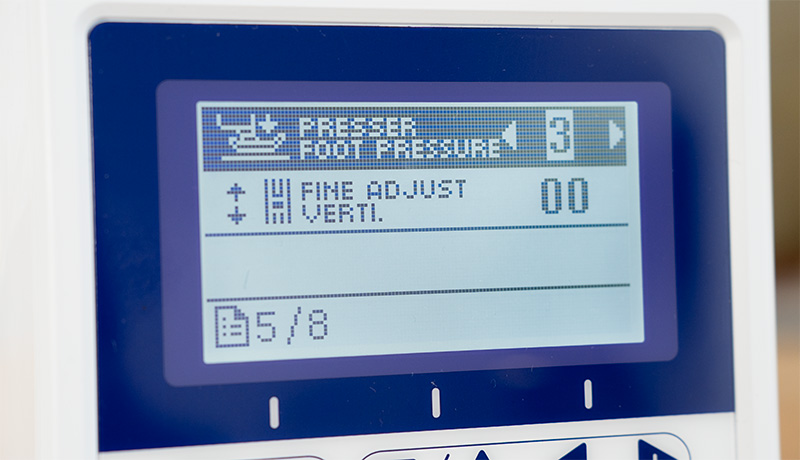

Adjustable Presser Foot Pressure
Fine-tune the presser foot pressure to accommodate different fabric thicknesses and types. This feature ensures optimal fabric handling and stitch quality across a variety of sewing projects.
Speed Control Slider
Maintain control over your sewing speed with the adjustable speed control slider. Whether you're a beginner or working on intricate designs, this feature allows for precise speed management.

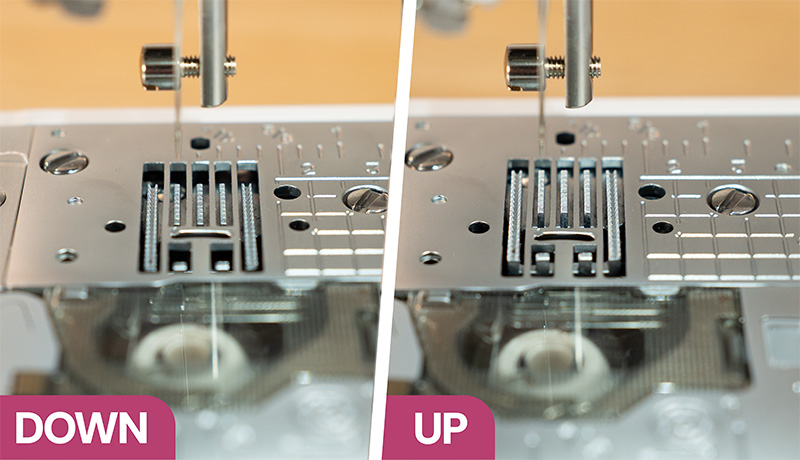

Drop Feed
Engage in free-motion sewing and quilting with the drop feed mechanism. Lower the feed dogs to move the fabric freely in any direction, perfect for creating intricate designs and patterns.
View detailed specifications →
Brother F420 Computerised Sewing Machine
What's in the box?
- Zigzag Foot
- Zipper Foot
- Buttonhole Foot
- Button Sewing Foot
- Overcasting Foot
- Monogramming Foot
- Blind Stitch Foot
- Foot Controller
- Knee Lifter
- Hard Case
- Operation Manual
- Needle Set
- Twin Needle
- Bobbin (4)
- Eyelet Punch
- Extra Spool Pin
- Small Spool Cap
- 2 x Medium Spool Cap
- Large Spool Cap
- Spool Net
- Large Screwdriver
- Disc-Shaped Screwdriver
- Cleaning Brush
- Seam Ripper
- Accessory Bag
Barcode: 4977766763936
SKU | F420_Options |
---|---|
Barcode # | 4977766763936 |
Brand | Brother |
Mechanical Warranty | 3 Years |
Computerised Warranty | 5 Years |
Machine Weight | 11.4kg |
Machine Height | 300mm |
Machine Length | 444mm |
Machine Depth | 241mm |
Workspace | 180mm x 130mm (7" x 5") |
Screen Size | 3.5" |
Screen Type | Monochrome LCD |
Lighting Type | LED |
Number Of Lights | 2 |
USB Port | 0 |
Wi-Fi Enabled | No |
Thread Cutter | Yes |
Needle Threading | Automatic |
Needle Up/Down Button | Yes |
Drop Feed | Yes |
Presser Foot Lift Button | No |
Start/Stop Button | Yes |
Reverse Button | Yes |
Auto-lock Stitch Button | Yes |
Stitch Selector | 10 Key (Touch Sensor) |
Foot Pressure Adjustment | Electronic |
Adjustable Presser Foot Height | No |
Bobbin Winder | Yes |
Drop-in Bobbin | Yes |
Tension Adjustment | Manual Dial |
Thread Sensor - Upper | No |
Thread Sensor - Bobbin | No |
Wide Table Included | No |
Foot Controller Included | Yes |
Knee Lifter Compatible | Yes (Included) |
Case Included | Yes (Soft Cover) |
Sewing Speed | 850SPM |
Max Stitch Width | 7mm |
Max Stitch Length | 5mm |
Quick Reference Stitch Chart | Yes |
Built-in Sewing Stitches | 180 |
Buttonhole Type | 1-Step |
Built-in Buttonhole Stitches | 10 |
Sewing Fonts | 5 |
Sewing Basting Stitch Included | No |
MuVit Included | No |
Stitch Regulator Included | No |
Included Sewing Feet | 7 |
Free-arm | Yes |
Pivot Function | No |
Feed Dogs | 7 |
Stitch Elongation | Yes |
Stitch Tapering | Yes |
Mirror Image Stitches | Yes |
Floating Mode | No |
Custom Stitch Creation | Yes |
Sideways Feed | No |
Shank Height | Low |
Shipping Weight | 13.8000kg |
Shipping Width | 0.360m |
Shipping Height | 0.430m |
Shipping Length | 0.570m |
Shipping Cubic | 0.088236000m3 |
Products available | |
F420
Brother F420 Embroidery Machine |
|
F420_BundleA
Brother F420 Machine with Bundle |
|

Brother Australia Innov-is warranty:
3 year on mechanical parts5 years on electrical and electronic parts
Impressive machine
By: Russell on 21 May 2023We’ll have I found a fabulous mid spec sew machine with so many tools to make sewing so much more enjoyable I make theatrical and period costumes and this machine handle thick and thin fabric so well Fantastic value very pleased
(5)
Amazing machine
By: Emily on 27 April 2023My machine makes learning to sew easier. The machine is well thought out when it comes to design and I really like the extra width this machine provides. It's a bit heavy for bringing to class, so I'd recommend getting a trolley if you're buying this machine.
(5)
Brother Innovis F 420
By: Gillian on 16 July 2022The perfect machine for me, as an intermediate sewer wishing to improve my skills on a computerised sewing machine. Love it.
(5)
